2 - 16 mw Butterfly Package 1550nm Laser Diode for CATV Broadcast
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Low Insertion Loss 1550nm Laser Diode , DFB Pigtailed Laser Diode
-
Low Dark Current FB Pigtailed Components 1550nm Laser Diode 6mw High Power
-
Integrated High Isolation 1310nm Laser Diode , FP Pigtail Cheap Laser Diode
-
1.25G - 2.5G Bandwidth FP Laser Diode 1310 Nm For Light Source
-
1550nm Laser Diode with CWDM Butterfly package for long haul CWDM transmission
-
CWDM 1550nm Cheap Laser Diode with 2.5G~4.3G package For CATV
Product Details
| Place of Origin | China | |
| Model Number | 1550nm butterfly laser diode |
Product Description
Certification:RoSH, ISO9001

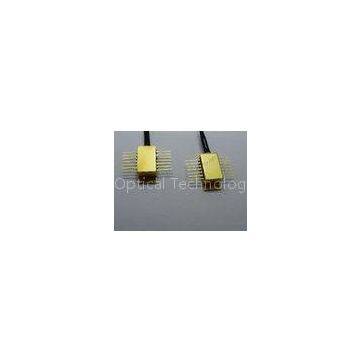

1550nm?Butterfly?Laser?Diode
Features
1. Optimized?for?2.5?Gb/s?Modulation?Rates
2. 14-pin?butterfly?cooled?package
3. Single?mode?FC/APC?connector?or?customized
4. High?linearity?high?power?MQW?DFB?LD?chip
5. Built-in?isolator,?TEC,hermistor?and?Monitor?PD
6. Output?power?2~16mW
Applications
1550nm?broadcast?and?point-to-point?applications
CATV?forward-path
Optical?&?Electrical?Characteristics
|
Parameter |
Symbol |
Test?Conditions |
Min. |
Typ. |
Max. |
Unit |
|
Center?Wavelength |
λc |
CW |
1540 |
1550 |
1560 |
nm |
|
Spectral?Width?(-3?dB) |
Δλ |
CW |
- |
0.5 |
1 |
nm |
|
Optical?Output?Power |
Po |
CW,?TL=25?°C |
- |
- |
16 |
mW |
|
Optical?Isolation |
IS |
T=25?°C |
30 |
35 |
- |
dB |
|
Side-mode?Suppression?Ratio |
SMSR |
CW |
35 |
- |
- |
dB |
|
Threshold?Current |
Ith |
TL=25?°C |
- |
10 |
15 |
mA |
|
Operating?Current |
Iop |
CW |
- |
- |
100 |
mA |
|
Forward?Voltage |
VF |
CW |
- |
1.2 |
2.0 |
V |
|
Monitor?Current |
Imon |
Vrpd=5?V |
100 |
- |
1500 |
μA |
|
Monitor?Dark?Current |
ID |
Vrpd=5?V |
- |
- |
100 |
nA |
|
Operating?Case?Temperature |
T |
- |
-20 |
- |
60 |
°C |
|
Tracking?Error |
γ |
TE=10log(Po(Tc)/Po(25°C) |
-1 |
- |
1 |
dB |
|
Thermistor?Resistance |
Rt |
T=25?°C |
9.5 |
- |
10.5 |
KΩ |
|
Thermistor?B?Constant |
B |
T=25?°C |
3900 |
K |
||
|
TEC?Current |
IC |
ΔΤ=40°C |
- |
- |
1.0 |
A |
|
TEC?Voltage |
VC |
ΔΤ=40°C |
- |
- |
2.0 |
V |
|
Cut-off?Frequency |
Fc(-3dB) |
If=Iop |
4 |
- |
- |
GHz |
|
RIN |
Nr |
