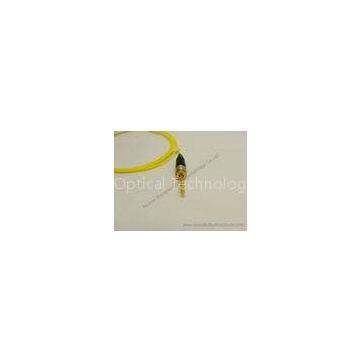

Long Wavelength 60mw 1550nm Laser Diode with 2.5Gb/s bandwidth
- T/T L/C D/P D/A
- 7 days
You May Like
-
Red Visible Light 650nm Laser Diode Module For Light Source Application
-
1270nm - 1610nm CWDM Butterfly Laser Diode for Long haul CWDM Transmission
-
1310nm 14 pin Butterfly Laser Diode with output power 2 - 32mw for CAT
-
2 - 16 mw 14 Pin Butterfly 1550 nm Laser Diode For Point - To - Point
-
OTDR 1490nm Pulse Laser Diode With High Output Power 40 - 60mw
-
Built - In Monitor PD 1650nm Pigtailed Laser Diode , High Power Diode Laser
Product Details
| Place of Origin | China | |
| Model Number | 1550nm pulse laser |
Product Description
1550nm 60mw Pulse?Laser?For?OTDR
?
?
Features
?
1. High?output?power?Pf?=?60?mW?@?IFP?=?450mA
2. Long?wavelength?λC?=?1550?nm
3. Built-in/out?monitor?PD
4. Pulse?Conditions:?Pulse?width?(PW)?=?10?μs,?Duty?=?1%
?
?
Applications
?
OTDR?System
?
?
Absolute?Maximum?Ratings
?
Parameter | Symbol | Min. | Typical | Max. | Unit |
Pulsed?Forward?Current | IFP | 750 | mA |
||
Reverse?Voltage | VR | 2 | V |
||
Reverse?Voltage?(monitor?PD) | VRM | 10 | V |
||
Reverse?Current?(monitor?PD) | IFPM | 2 | mA |
||
Operating?Case?Temperature | TC | 0 | 60 | ℃ |
|
Storage?Temperature | Tstg | -40 | 85 | ℃ |
|
Lead?Soldering?Temperature | Tsld | 260(10s) | ℃ |
||
Relative?Humidity?(noncondensing) | RH | 85 | % |
?
?
Optical?&?Electrical?Characteristics
?
Parameter | Symbol | Min. | Typ. | Max. | Unit | Notes |
Forward?Voltage | VFP | 3.5 | V | IFP?=?450?mA,?PW?=?10?μs,?Duty?=?1%? |
||
Threshold?Current | Ith | 20 | 35 | mA | ||
Optical?Output?Power?From?SM?Fiber | Pf | 60 | mW | IFP?=450?mA,?PW?=?10?μs,?Duty?=?1%? |
||
Center?Wavelength | λc | 1530 | 1550 | 1570 | nm | PW?=?10?μs,?Duty?=?1%? |
Spectral?Width? | σ | 4 | nm | RMS?(?3?dB)? |
||
Rise?Time? | tr | 0.5 | 2.0 | ns | 10-90% |
|
Fall?Time? | tf | 0.5 | 2.0 | ns | 90-10%? |
|
Monitor?Current? | Im | 0.05 | 2 | mA | VRM?=?5V? |
?
?
Pin?Description:
?
?
?
Package?Outline
?
?
?
Order?information
?
PLD-F552-XAXX
P | LD | -F | 55 | 2 | -X | A | X | X |
Mode | Product?Type | Chip | Wavelength | Bandwidth | Connector | Pin | Pigtail?Length | Power?Range |
F:FP | 55:1550nm | 2:2.5Gb/s | 1:FC/APC | A:725 | 05:0.5m | P60:＞60mW |
