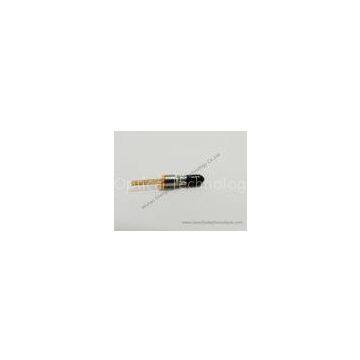

Digital And FFTH 1310nm DFB TOSA Laser Diode with LC receptacle
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
LC package 1.25G InGaAs PIN TIA Rosa Photodiode for Telecommunication
-
Professional Coaxial Pigtail 30mw Pulsed Laser Diode 1650nm for ODTR
-
Professional Instruments And Meters Visible Light Red Laser Diode 650nm
-
Visible Light 635nm Laser Diode Red Low Threshold Current For Meters
-
2 - 16 mw Butterfly Package 1550nm Laser Diode for CATV Broadcast
-
Low Insertion Loss 1550nm Laser Diode , DFB Pigtailed Laser Diode
Product Details
| Place of Origin | China | |
| Model Number | 1310nm TOSA |
Product Description
Certification:RoSH, ISO9001
1310nm?DFB?LC?TOSA?
?
Features
?
1. Excellent?reliability
2. Low?threshold
3. LC receptacle?package
4. MQW-DFB?laser?diode
5. Built-in?monitor?PD
?
?
Applications
?
Optical?Transmitter(digital?Signal)
?
?
Absolute?maximum?ratings
?
Parameter | Symbol | Min. | Max. | Unit | Test?Condition? |
Storage?Temperature | Tstg | -40 | 85 | ℃ | - |
Operating?Temperature | Top | 0 | 70 | ℃ | - |
Forward?Current(LD) | If | - | 100 | mA? | |
Reverse?Voltage(LD)? | Vf | - | 2 | V | - |
Forward?Current?(PD) | Ir | - | 2 | mA? | - |
Reverse?Voltage?(PD) | Vr | - | 20 | V | CW |
Soldering?Temp | - | - | 260 | ℃ | - |
Soldering?Time | - | - | 10 | S | S |
?
?
Optical?&?Electrical?Characteristics
?
Parameter | Symbol | Min. | Typ. | ?Max. | Unit | Test?Condition? |
Optical?Output?Power?? | Pf? | - | 1 | - | mW | CW??? |
Central?Wavelength | λ | 1300 | 1310 | 1320 | nm | CW,T=25℃ |
Spectral?Width?(-20dB) | Δλ? | - | - | 1.0 | nm | CW,T=0~70℃? |
Threshold?Current?? | Ith? | - | 6 | 15 | mA | CW,T=25℃?? |
- | - | 45 | CW,T=0~70℃? |
|||
Operating?Current | Iop? | - | Ith+20 | - | mA | CW,T=0~70℃ |
Operating?Voltage | Vop | - | 1.0 | 1.5 | V | CW,T=25℃?? |
Side?mode?suppression?ratio? | SMSR? | 30 | - | - | dB | CW,T=0~70℃? |
Rise?Time/Fall?Time? | Tr/Tf | - | - | 0.2 | ns | T=25℃,20~80%?? |
Tracking?Error? | TE | -1.2? | - | 1.2 | dB | CW,T=0~70℃? |
PD?Monitor?Current | Im | 100? | - | 1000 | uA | CW,T=0~70℃ |
PD?Dark?Current | Id | - | - | 100 | nA | T=25℃?? |
?
?
PIN?Definition
?
?
Drawing
?
?
?
Order?Information
?
TLD-D31WX-LBP1
T | LD | -D | 31 | W | X | -L | B | P1 |
Mode | Product?Type | Chip? | Wavelength | Insolator | Bandwidth | Connector | Pin | Power?Range |
D:DFB | ? | W:Without | 1:1.25Gb/s | ? | B:720 | ? |
