One-key Shutdown X-ray Parcel Scanner System Display Shiny Clear Images
- T/T L/C D/P D/A
- 7 days
You May Like
-
Double View Design Parcel Scanner System Display Horizontal and Vertical Images Simultaneously
-
Durable Baggage Screening Airport X Ray Baggage Scanner L Shaped Photodiode Array
-
Integrated Medium Size X Ray Baggage Scanner with 17inch Diaplay Screen
-
Integrated Film Safty ISO1600 X Ray Baggage Scanner with Clearly Detected Images
-
Digital Subway Station X Ray Luggage Scanner System For Baggage Security Scanner
-
High Penetration Steel X Ray Airport Luggage Scanner 650 Mm * 500 Mm Tunnel
Product Details
| Brand Name | EASTIMAGE | Place of Origin | China | |
| Model Number | EI-6550 DV |
Product Description
Certification:FDA/ROHS/ISO9001/CE/FCC

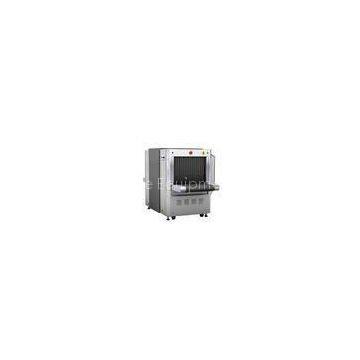

One-key Shutdown X-ray Parcel Scanner System Display Shiny Clear Images
Description:
EI-6550DV is a new product of dual view x-ray security inspection equipment. It can display horizontal and vertical images by two independent generators, and can quickly detect organic, inorganic, mixtures or light metals according to the effective atomic number of detected objects, which can identify overlapping articles and contraband easily and precisely.
Applications:
Airport Train station Bus station Social Events Post office Logistics CenterTechnical Specifications:
| Tunnel Size: | 650 mm(W)× 500 mm(H) |
| Conveyor Speed: | 0.2m/s |
| Conveyor Max Load: | 160 kg(Evenly distributed) |
| Wire Resolution: | 38AWG to 40 AWG |
| Spatial resolution: | horizontal: 1.0mm,?vertical: 1.0mm |
| Penetration: | 30 to 32 mm Steel |
| Film Safety: | Guarantee ISO1600 Film |
| X-ray Leakage: | <2μGy/h (at a distance of 5cm From external housing) |
| Pass rate: | 720 bags per hour |
| Beam direction: | From the bottom up and left side |
| Generate angle: | 80 degree |
| Anode Voltage: | 160Kv adjustable |
| Anode power: | 0.4 to 0.5mA |
| Cooling / Duty Cycle: | Oil Cooling /100% |
| X-ray Sensor: | L-Shaped Photodiode Array (Multi-energetic) |
| Monitor: | High Resolution Color, LCD Accord, 17 inch |
| Image Processing: |
Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval. |
| Image Grey Level: | 8192 |
| Image Max Resolution: | 1024 * 1280 pixel |
| Image Processing: | 24bit real time processing |
| Image storage: | Storage 100,000 pictures in real time |
| Zoom: | max 30 Times Enlarge, Whole screen continuous observation |
| Operation temperature/Humidity: | 0℃-45℃/20%-95%(non-condensing) |
| Storage Temperature/Humidity: | -40℃-60℃/20%-95%(non-condensing) |
| Operation Power: | 220VAC(±10%)50±3Hz |
| Power Consumption: | 1.8 KW (max), 0.3KW(working) |
| Noise: | <58db |
Installation Data:
|
Size |
2238 mm(L)x 1306mm ( W)x 1415 mm(H) |
|
Weight |
800 KG |
|
Working Temperature / Humidity |
0℃～+45℃／20%～95% (non-condensing) |
|
Storage Temperature / Humidity |
-40℃～+60℃／20%～95% (non-condensing) |
|
Power Supply |
AC 220 V(+10%~-15%) 50±3(Hz) |
|
Power Consumption |
About 0.55 (KVA) |
Quality Assurance:
● Strictly internal quality control , double-check principles of engineering and production
● Safeguard measures for machine parts
● Through the test by Ministry of public security and police use electronic product quality testing center
● EU CE certificate
● ISO9001 Quality Management System certificate
● ISO14001 Environmental Management System certificate
● OHSAS18001 Occupational Health and Safety Management System certificate
● Radiation Safety Certificate of Shanghai Environmental Protection Department
