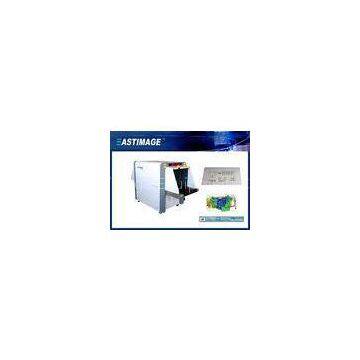

L Shaped Photodiode Array X Ray Parcel Scanner 650(W) * 500(H) Mm Tunnel Size
- T/T L/C D/P D/A
- 7 days
You May Like
-
30mm Steel X Ray Food Inspection Systems , Security X Ray Machine 160 KG
-
X ray Cargo Inspection System EI - 6550B X Ray baggage scanner With UK PCB Board
-
Conveyor Speed Changeable X Ray Baggage Scanner for Transportation System
-
Speed Changeable , Efficient X Ray Baggage Scanner for High Throughput Luggage Security Check
-
Conveyor Speed Changeable X Ray Baggage Scanner for Transportation System
-
650 * 500mm Channel Speed Adjustable X Ray Luggage Scanner for Peak Passenger Flow Station
Product Details
Brand Name | EASTIMAGE | Place of Origin | China | |
Model Number | EI -6550B |
Product Description
Certification:CE,FCC,FDA,Rohs
L Shaped Photodiode Array X Ray Parcel Scanner 650(W) * 500(H) Mm Tunnel Size
What We Can Promise:
Good Quality products ;
Caring after sales service;
OEM/ODM;
We have been in X Ray Baggage Scanner Machine industry for 12 years.We have great strength to give you strong support.
Quality Assurance:
● Strictly internal quality control , double-check principles of engineering and production
● Safeguard measures for machine parts
● EU CE certificate
● ISO9001 Quality Management System certificate
● ISO14001 Environmental Management System certificate
● OHSAS18001 Occupational Health and Safety Management System certificate
● Radiation Safety Certificate of Shanghai Environmental Protection Department
General Specifications:
Tunnel Size: | 650 mm(W)× 500 mm(H) |
---|---|
Conveyor Speed: | 0.2m/s |
Conveyor Height: | 675.5mm |
Conveyor Max Load: | 160 kg(Evenly distributed) |
System Noise | <60dB(A) |
Wire Resolution: | 38AWG to 40 AWG |
Penetration: | 30 to 34 mm Steel |
Spatial resolution: | Horizontal: 1.0mm Vertical: 1.0mm |
Image Processing System | ? |
Display | Color & Black and white |
Processing Function |
F1/F2/F3 self-definition combination, edge enhancement, negative, the organic & inorganic excluding, high & low penetration, super enhancement, gray scale scan |
Saves Capacity & Pull back | 100,000 images / infinite review (the previous pictures) |
Resolution | 1280×1024 |
Processing & Gray Scale | 24Bit real-time processing/8192 |
Enlargement |
Up to 64X dynamic continuous zoom & panning |
X-Ray Generator | ? |
Anode Voltage | 160 KV(adjustable) |
Beam Direction | From bottom |
Cooling & Running Cycle | Sealed oil cooling & 100% |
X-Ray Sensor | Multi-energy L photoelectric diode array detector |
X-Ray Security | ? |
Single inspection dose rate | < 2μGy |
Leakage | < 1μGy/h(5cm distance from outer), comply with the national and international safety standard |
Film Safty | According to the ISO1600(33DIN) High speed standard |
Installation Data | ? |
Size | 2300 mm(L)x 910 mm ( W)x 1320 mm(H) |
Weight | 650 KG |
Working Temperature / Humidity | 0℃~+45℃/20%~95% (non-condensing) |
Storage Temperature / Humidity | -40℃~+60℃/20%~95% (non-condensing) |
Power Supply | AC 220 V(+10%~-15%) 50±3(Hz) |
Power Consumption | About 0.43(KVA) |
Shanghai Eastimage Equipment Co.,Ltd offers a modern technology to security checkpoints for important locations like airports, transport terminals,Government buildings, and so on. Our systems can detect contraband, weapons, dangerous and illegal items in baggage and parcel. Model EI6550 easily accommodates the inspection of small baggage and parcels. Shanghai Eastimage Equipment Co.,Ltd is based on user-friendly design with ergonomic operator control panel and adjustable control panel stand. It is easy to installation and maintenance. Over 100 systems per month installed in china and abroad. EASTIMAGE ‘products received certificates of CE, Test report from China Ministry of Public Security and Copyright for image Operation software SPHOTO.
