Home > Products > Cargo Inspection System > Selected Conveyor Speed Cargo Inspection System with Middle Tunnel Size 650 * 500mm

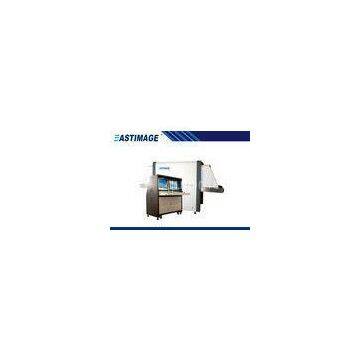

Selected Conveyor Speed Cargo Inspection System with Middle Tunnel Size 650 * 500mm
Negotiable
/ Set
1 Set(Min.Order)
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Public Security X Ray Baggage Inspection System 650 Mm * 500 Mm Channel
-
Portable Airport Xray Scanner , Cargo X Ray Scanner For Security Checking
-
Security Parcel Scanner Machine Airport X Ray Scanner With Long Warranty Time
-
Auto Alarm Airport Parcel Scanner Machine for Security Check 0.2 M / S
-
Lead Curtain Food X Ray Inspection Equipment , Digital X Ray Equipment 0.3m/S Speed
-
High Resolution X Ray Baggage Scanner Security with 61 * 41cm Channel
Product Details
| Brand Name | EASTIMAGE | Place of Origin | China | |
| Model Number | EI6550 G |
Product Description
Certification:CE/FDA/FCC/ISO9001
Selected Conveyor Speed Cargo Inspection System with Middle Tunnel Size 650 * 500mm
What EASTIMAGE Can Promise:
Excellent Quality products ;
Perfect?after sales service;
OEM/ODM Service;
We have been in X Ray Luggage Scanner Machine industry for 12 years.We have great strength to give you strong support.
Technical Parameters
| Tunnel Size: | 650 mm(W)× 500 mm(H) |
| Conveyor Speed: | 0.2m/s (can change to 0.3m/s) |
| Conveyor Height: | 682mm |
| Conveyor Max Load: | 160 kg(Evenly distributed) |
| System Noise | <60dB(A) |
| Wire Resolution: | 38AWG to 40 AWG |
| Penetration: | 30 to 34 mm Steel |
| Spatial resolution: | Horizontal: 1.0mm Vertical: 1.0mm |
Image Processing System
| Display | Color & Black and white |
| Processing Function |
F1/F2/F3 self-definition combination, edge enhancement, negative, the organic & inorganic excluding, high & low penetration, super enhancement, gray scale scan |
| Saves Capacity & Pull back | 100,000 images / infinite review (of the previous pictures) |
| Resolution | 1280×1024 |
| Processing & Gray Scale | 24Bit real-time processing/65536 |
| Enlargement |
Up to 64X dynamic continuous zoom & panning |
X-Ray Generator
| Anode Voltage | 160 KV(adjustable) |
| Beam Direction | From bottom |
| Cooling & Running Cycle | Sealed oil cooling & 100％ |
| X-Ray Sensor | Multi-energy L photoelectric diode array detector |
X-Ray Security
| Single inspection dose rate | < 2μGy |
| Leakage | < 1μGy/h(5cm distance from outer), comply with the national and international safety standard |
| Film Safty | According to the ISO1600(33DIN) High speed standard |
Operating Environment:
Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
Storage Temperature/Humidity:-40℃-60℃/20%-95%(non-condensing)
Operation Power: 220VAC(+10%～-15%50±3Hz
Power Consumption: 1.8 KW (max), 0.3KW(working)
Noise: <58db
Dimensions (L×W×H) :2039mm x905mm x1370 mm
Device Weight: 600Kg
Contact Us
- Shanghai Eastimage Equipment Co., Ltd
- Contact nameMs. Tammy lee Chat Now
- Phone86-21-33909328
- AddressNo.111,Zhiye Road,Pudong New District,Shanghai,P.R.China, Huzhou, Zhejiang
