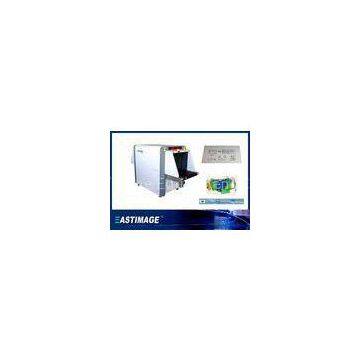

Modular Design X Ray Luggage Scanner with Hign Efficiency for Airport / Metro Station

Modular Design X Ray Luggage Scanner with Hign Efficiency for Airport / Metro Station

EI6550G Presentation

What is special for EI6550G is its changeable?conveyor speed,usually you can chose 0.2m/s for baggage ?security cheek , but When the flow of people is large like?rush hour of metro station,airport railway station when holidays times,you can chose 0.3m/s to improve ?effectiveness.

Applications

Designed for transportation system where high throughput luggage security check is required.Such as airport, railway station, bus station etc.

General Specifications

● Tunnel Dimensions.................................650 mm(W)× 500 mm(H)

● Conveyor Belts Speed.......................0.2m/s & 0.3m/s adjustable

● Conveyor Height......................682 mm

● Maximize Load...................................160 kg(Evenly distributed)

● Resolution...................................Typical: 40 AWG Standard: 38 AWG

● Penetration(steel).....................Typical: 34 mm Standard: 30 mm

Image Processing System

● Display.........................................Color & Black and white

● Processing Function................F1/F2/F3 self-definition combination, edge enhancement, negative ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?image, organic / inorganic separation high & low penetration,

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?high level enhancement, gray scale scan

● Saves Capacity & Pull back...100,000 images / infinite review (the previous picutures)

● Resolution...................................1280×1024

● Processing & Gray Scale........24Bit real-time processing/65536

● Enlargement...............................Up to 64X dynamic continuous zoom & panning

Images Processing Functions

Magnifier: Partial magnifying function

Brightening/Dimming: Increase/Decrease brightness of images

Image Recurrence: Display all the previous images and process any one of them

Image Restoration: Restore image to initial status

Image Storage: Real-time store any images and process it in operation status

X-ray sensor: L-shaped photodiode array detector

Display: High-resolution 17 inch color LCD display

Edge enhancement: Object contour edge is more distinct

Super image enhancement: Image detail is more distinct

X-Ray Generator

● Anode Voltage..........................160 KV(adjustable)

● Beam Direction.........................From bottom

● Cooling & Running Cycle......Sealed oil cooling & 100％

● X-Ray Sensor..............................Multi-energy L photoelectric diode array detector

X-Ray Security

● Single inspection dose rate......< 2μGy

● Leakage...............................< 1μGy/h(5cm distance from outer), comply with the national and ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?international safety standard

● Film Safty............................According to the ISO1600(33DIN) High speed standard

Quality Assurance:

● Strictly internal quality control , double-check principles of engineering and production

● Safeguard measures for machine parts

● Through the test by Ministry of public security and police use electronic product quality testing center

● EU CE certificate

● ISO9001 Quality Management System certificate

● ISO14001 Environmental Management System certificate

● OHSAS18001 Occupational Health and Safety Management System certificate

● Radiation Safety Certificate of Shanghai Environmental Protection Department

System Functions

Date & Time Display, Luggage Counting, System Working Timing, X-Ray Emission, Working Status Display, User Management, Fault Self-diagnosis and Maintenance Functions, Alarm Function, Urgent Stop, Limits of Authority Management for Operator, Self-check Power-On, Image Magnification Display, Save and Retrieval, Image Navigation, Single-directional Scanning, Image Recognition Training, Network Interface,Browse, Save As, Ultra-thin scanning, TIP, X-Autosight, High Density Alarm, One-key Shutdown.
