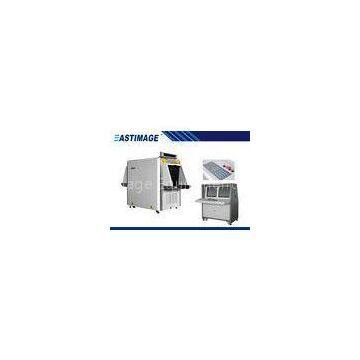

Conveyor Speed Changeable X Ray Baggage Scanner for Transportation System

Brand Name	EASTIMAGE		Place of Origin	China
Model Number	EI-6550G

Delivery Time:within 4~20 working days
Certification:FCC/FDA/CE/ ISO9001 / ROHS

Conveyor Speed Changeable X Ray Baggage Scanner for Transportation System

EI-6550G x-ray security detection equipment is a new product of Eastimage, two optional speeds are available for your choice. When there is a small amount of flowing people, you can turn the speed to 0.2m/s; and you can turn it into 0.3m/s when it need high throughput. It is ideal for airport, railway stations, and large-scale events where high efficient security detection is required.

Main Features

Two optional speeds (0.2m/s and 0.3m/s) and proprietary image technology,improves efficiency by 1.5x or more while maintaining image quality. Equipped with High-precision X-ray detectors, making images sharp and clear. World’s leading pure digital, large scale analog components results in high-speed parallel data acquisition. Medium tunnel design, coupled with the operator authorization control, real time status information, statistical reports and multiple user-friendly configurations. Portable separate structural design, equipped with independent operator’s desk. Dual monitor configuration, displaying both black and white images and color images. Advanced image processing platform, providing strong functionality to the operator. Modular design makes it available for future extension. Meet all the applicable laws and regulations with respectable X-ray emitting devices. Penetration, resolution and other key technical specifications have reached or exceeded the Chinese national standard GB15208-2005. Designed for transportation system where high throughput luggage security check is required.

General Specifications

Tunnel Size..............................650 mm(W)×500 mm(H)

Conveyor Speed......................0.2m/s,0.3m/s

Conveyor Height......................682mm

Max. Load................................160 kg(Evenly distributed)

Installation Data

Size ...........................2039mm(L)x 905 mm (W)x 1370 mm(H)

Weight……………………600kg

Working Temperature / Humidity.....0℃～+ 45℃／20%～95%

(non-condensing)

Storage Temperature / Humidity......- 40℃～+ 60℃／20%～95%

(non-condensing)

Power Supply..............AC 220 V(+10%~-15%) 50±3(Hz)

Power Consumption....About 0.46(KVA)
