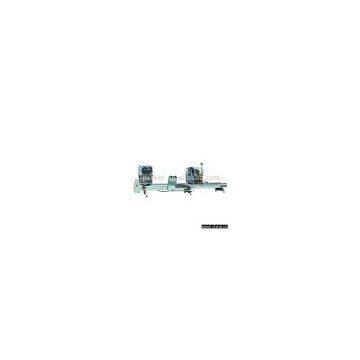

Sell Alu-PVC Digital Control Double Miter Saw

Place of Origin	China

Model No.:LJZ2S-500 x 4200
Product Origin:China
Brand Name:Parker
Price Terms:
Payment Terms:
Certification:
Description:Parameters and specifications: 1) Repeating fixed length precision: ≤0.2mm 2) Cutting angle: 5' 3) Cutting plane: ≤0.1mm 1) Cutting sag: ≤0.1mm 4) Cutting harshness: Ra12.5μm 5) Power supply: 380V, 50Hz (three-phase, four-wire) 6) Motor supply: 2 x 2.2kW 2) Feeding speed: 0-3m/min (variable speed) 7) Speed: 2,800rpm 8) Saw blade dimensions: Φ500 x 4.4 x Φ30mm, Z=120mm 9) Air pressure: 0.5-0.8MPa 10) Air consumption: 200L/min 11) Cutting angle: 90°, 45°, 67.5° (22.5°) 12) Cutting length: max. 4,200mm (5,000mm), min. 400mm 13) Cutting width: max. 140mm 14) Cutting height: max. 300mm 15) Overall dimensions: 5,500 x 1,700 x 1,800mm 16) Weight: 1,800kg (2,000kg) Equipment features: 1) Used for cutting of alu-alloy and wall profiles 2) The imported special hard-metal saw features the high precision and efficiency for cutting alu-alloy doors and windows 3) The cutting precision has reached the advanced level in the world 4) The high precision main shaft makes the saw stable and the surface smooth 5) The gas-liquid damping cylinder realizes smooth feeding and steady moving 6) The automatically opening and closing protecting cover makes the operation safe and easy 7) The moving heads adopt imported linear bearing motion pair, and they features high precision 8) The moving feeder can efficiently locate the profile, and make the clamping easy and reliable 9) With the large saws and long structures, the saw has large cutting range. If CNC system is put in, it can make the cutting much more precise (precision 0.01mm), and the operating more visualized
