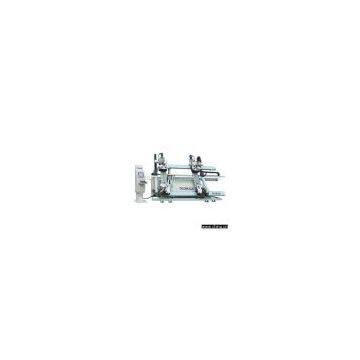

Sell Alu-Door-Window Four Corner Automatic Crimping Machine

Place of Origin	China

Model No.:LJJZ4-CNC-1800*3000
Product Origin:China
Brand Name:Parker
Price Terms:
Payment Terms:
Certification:
Description:Parameters and specifications: 1) Power supply: 380V, 50Hz (three-phase, four-wire) 2) Hydraulic system pressure: 15MPa 3) Air pressure: 0.5-0.8MPa 4) Oil tank capacity: 60L 5) Air consumption: 0.45L/min 6) Corner-assemble: 0-50mm 7) Max. dimensions: 1,800 x 3,000mm 8) Min. dimensions of window: 510 x 510mm 9) Dimensions of profile: 100mm 10) Overall dimensions: 5,000 x 2,000 x 2,600mm 11) Weight: 3,000kg Equipment features: 1) Adopts original imported installation flat square guide rail, which can guarantee the precision of the heads when moves horizontally 2) Transmission adopts the original imported installation ball bearing master screw 3) The precision is extremely high, so it can guarantee group angle quality 4) The servo controlling machines, servo motor, person-machine touching the contact surface adopt the original imported installation of Japanese Mitsubishi system, and the increased assistance brake system 5) It is stable and efficient
