- Jinan Parker Machinery Co., Ltd.
-
Shangluo, Shaanxi, China
- Main products: PVC and aluminum door and window equipment, insulating glass equipment, curtain wall processing equipment, door and window design and management software
Home > Products > New product > Sell Alu-Alloy Conjoint Block Cutting Saw

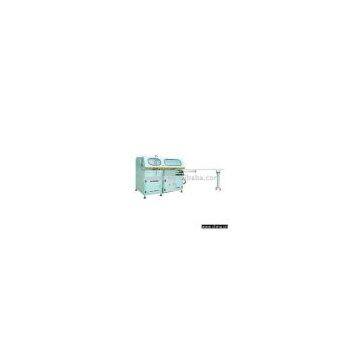

Sell Alu-Alloy Conjoint Block Cutting Saw
Negotiable
/ Set
1 Set(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China |
Product Description
Product Origin:China
Brand Name:Parker
Price Terms:
Payment Terms:
Certification:
Description:Parameters and specifications: 1) Cutting sag: 0.1mm 2) Cutting plane: 0.1mm 3) Cutting harshness: Ra12.5μm 4) Power supply: 380V, 50Hz (three-phase, four-wire) 5) Saw blade diameter: Φ500mm 6) Rotary speed: 2,800rpm 7) Feeding speed: 0-3m/min 8) Feeding profile length: 0-600mm 9) Air pressure: 0.5-0.8MPa 10) Air consumption: 200L/min 11) Weight: 800kg Equipment features: 1) Used for corner connector of aluminum profile cutting and for plastic cutting 2) Imported carbide saw blade ensures accurate processing and high endurance 3) Linear bearing motion pair gives less resistance force and ensures high processing accuracy 4) Auto profile feeding devices available 5) Suitable for large volume production 6) Clamping and feeding process adopts pneumatic control. It has features of high automation, reliability and production efficiency 7) It adopts automatic counters
Contact Us
- Jinan Parker Machinery Co., Ltd.
- Contact nameTony Han Chat Now
- Phone86-531-88977166
- Address157 North Gongye Road, Jinan City, Shandong Province. China, Shangluo, Shaanxi
