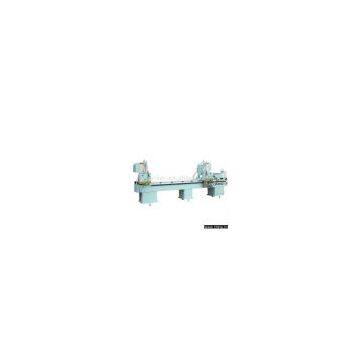

Sell Alu-PVC Double Head Saw (Saw King)

Place of Origin	China

Model No.:LJZ2-450*3700
Product Origin:China
Brand Name:Parker
Price Terms:
Payment Terms:
Certification:
Description:Parameters and specifications: 1) Power: 380V, 50Hz (three-phase and four-wire) 2) Motor power: 2 x 1.5kW 3) Rotary speed: 2,800rpm (1,400rpm) 4) Trailer motor: 0.55kW 5) Air pressure: 0.4-0.6MPa 6) Air consumption: 200L/min 7) Cutting length: max. 3,700mm, min. 400mm 8) Cutting height: max. 200mm 9) Cutting width: max. 120mm 10) Cutting angle: -45°, 90° and 45° 11) Feeding speed: 0-3m/min (variable speed) 12) Saw blade dimensions: Φ450 x 4 x Φ30mm, Z=120mm 13) Overall dimensions: 4,700 x 1,600 x 1,600mm 14) Weight: 1,500kg Equipment features: 1) Imported carbide saw blade gives accurate processing and high endurance 2) Saw blade rotates smoothly due to high accuracy main spindle 3) Uniform speed feeding and smooth motion due to air-draulic damping cylinder 4) Used for cutting aluminum at -45°, 90° and 45° 5) One time processing can cut off the required length 6) The safety devices designed specially clamp the devices when power is cut off suddenly, so the safety of operators is assured
