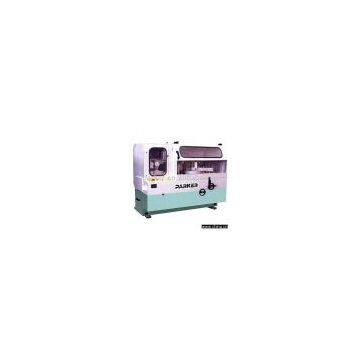

Sell Aluminium Connecting End Cutting Saw

Place of Origin	China

Model No.:CEC500
Product Origin:China
Brand Name:Parker
Price Terms:
Payment Terms:
Certification:
Description:Specifications: 1) Power supply: 380V, 50Hz 2) Input motor: 2 x 2.2kW 3) Rotary speed: 2,800rpm 4) Air pressure: 0.5-0.8MPa 5) Air consumption: 60L/min 6) Cutter swing scope: ±45° 7) Cutting depth: 150mm 8) Feeding speed: 0-3m/min (variable speed) 9) Saw blade dimensions: Φ500 x 4.4 x Φ30mm, Z=120mm 10) Dimensions: 3,140 x 1,380 x 1,800mm 11) Weight: about 1,500kg Main applications: 1) This machine is a new model which is adapted to the aluminum curtain wall, lighting and skylight processing industry 2) The machine is simple, reliable, with advanced technology, easy maintenance 3) Tooth carbide saw blade ensures cutting speed, high productivity, high precision machining 4) Concerning the first two hours of work, it will be able to carve out special requirements of profile end points 5) Saws two ±45° arbitrary cutting angles and workstations in distribution of magnetic-foot swing control system to achieve high degree of adjustment of number of workstations and convenient positioning devices 6) Profiles can be cut out to end the special perspective of aluminum curtain walls and lighting skylights
