Home > Products > New product > Sell Alu-PVC Multifunction Single Head Saw

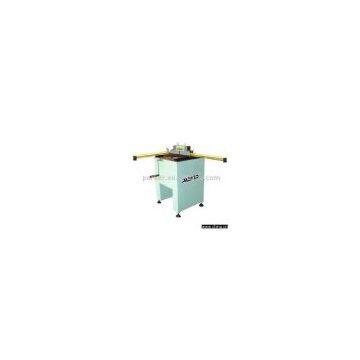

Sell Alu-PVC Multifunction Single Head Saw
Negotiable
/ Set
1 Set(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China |
Product Description
Product Origin:China
Brand Name:Parker
Price Terms:
Payment Terms:
Certification:
Description:Product Name: Alu-PVC Multifunction Single Head SawModel Number: LDJ-135Place of Origin: ChinaParameters and specifications: 1) Repeating fixed length precision: ≤0.3mm 2) Cutting angle: ±5' 3) Cutting plane: ≤0.1mm 4) Cutting harshness: Ra12.5μm 5) Power supply: 380V, 50Hz (three-phase, four-wire) 6) Motor power: 2 x 1.5kW 7) Rotary speed: 2,800rpm 8) Trailer speed: 1,400rpm 9) Air pressure: 0.5-0.8MPa 10) Cutting length: max. 120mm, min. 60mm 11) Cutting width: max. 120mm 12) Cutting height: max. 80mm 13) Feeding speed: 0-3m/min (variable speed) 14) Saw blade dimensions: Φ300 x 2. 8 x Φ30mm, Z=100mm 15) Overall dimensions: 700 x 780 x 1,310mm 16) Weight: 120kg Equipment features: 1) Used for cutting aluminum at 0°- 135° 2) Primarily used for cutting of all kinds of aluminum metal alloy window profiles 3) May also be used for the cutting of other aluminum profiles
