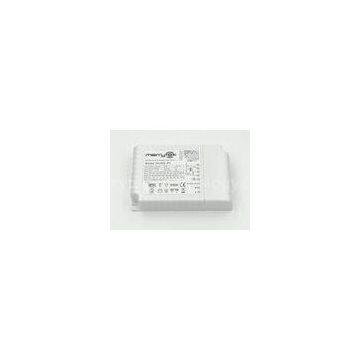

250mA To 700mA Daylight Harvesting Sensor ML30C-PV / Dimmable LED Driver 1-10V

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Merrytek		Place of Origin	China
Model Number	ML30C-PV + MS01 + MC008S

Product Description

Delivery Time:1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 week
Certification:CE , R&TTE

Auto switch off MW sensor work with dimmable led driver ML30C-PV and 1-10V Daylight Harvesting

Description

? Widely applied in meeting room,lobby,office. ? MS01 work with ML30C-PV and MW sensor MC008S to provides daylight harvesting and auto switch off function ? Output current to load selectable from 250mA to 700mA ? With ambient light dependent control. ? Directly connected to 1-10V interface. ? Simple setting of the target light level by mean of potentiometer ? MC008S will switch off load when no motion detected ? MS01 supplies a simple and effective solution for daylight harvesting. Connecting to 1-10V interface and using photocell to measure ambient lux level and automatically calculate how much artificial light is need, and then convert the amount of light to 1-10V dimmable control gears (ballasts or LED drivers).1-10V dimmable control gears adjust the lighting output according to the signal from the daylight sensor.

Function:

Daylight harvesting and auto switch off

Specifications:

Operating voltage	1 - 10Vdc(MS01) 220-240Vac(ML30C-PV,MC008S)
Max. current sink	50mA(MS01) 700mA(ML30C-PV)
Dimming range	1％~100％
Output voltage	60Vdc max
Cable length	80Cm
Color coding of cable	Red+, Black-
Detection angle	? ? ? ? 90°
IP rating	?IP20
Operation Temperature	?-0℃~45℃(MS01) -20℃ ~ 50 ℃(ML30C-PV) -20℃ ~ 60 ℃(MC008S)

Applications:

Office, Workshop, Warehouse, etc
