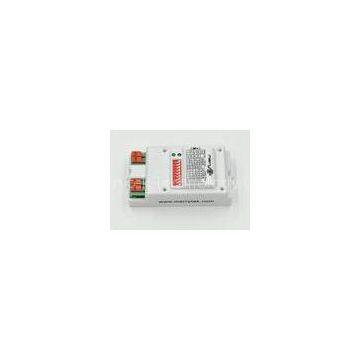

Compact Size ON - OFF Microwave Motion Sensor MC008S , Detection Sensitivity 75%
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Wall Mount 150 Detection Angle Microwave Motion Sensor , Hold Time 10s / 30s
-
Unique 15M Range Microwave Motion Sensor With 4 - Pole Press - In Terminal
-
Balcony Light Microwave Motion Sensor 5.8GHz 75MHz , ISM Wave Band
-
Small Microwave Motion Sensor MC008S E With 4 - Pole Press - In Terminal ( L , N , N , L )
-
Temperature Control ON-OFF Microwave Motion Sensor 400 Watt 82x36.5x 25.5 mm
-
Dry Contact Detector / Microwave Motion Sensors Easy Assembly , Guaranty 5 Years
Product Details
| Brand Name | Merrytek | Place of Origin | China | |
| Model Number | MC008S |
Product Description
Certification:TUV, CE & R&TTE
400W 220-240Vac Input ON-OFF Microwave Motion Sensor MC008S with TUV & CE and R&TTE approval
Description:
1.?Automatic switching based on motion and ambient light level.
2. Zero-crossing point operation helps protect the sensor against in-rush current.
3.?Compact size makes it suitable to fix within most luminaires.
4.?4-pole press-in terminal (L, N, N,L′),easy assembly.
5. 5.8GHz high frequency microwave(C-Band license-free operation)
6.?Detection area, time delay and daylight threshold can be precisely set via DIP switch.
7.?MC008S is an innovative and active motion detector with HF system 5.8GHz. It automatically switches on/off light based on motion and ambient light level. Can control all kinds of lamps, for example, halogen, fluorescent and LED lights. Compact size and small casing, suitable to fix within most luminaires . Motion can be detected through plastic, glass and thin non-metal materials.
Function:
ON-OFF function?
Detection Pattern:
Specifications:
|
Operating voltage |
220-240Vac, 50Hz |
|
Rated load |
Inductive :400W,Resistive : 800W |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
12m x 6m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation temperature |
-20℃~60℃ |
|
Hold time |
10s / 30s / 90s / 3min / 20min / 30min |
|
Detection sensitivity |
10% / 25% / 50% / 75% / 100% |
|
Daylight sensor |
5lux / 10lux / 30lux / 50lux / Disable |
|
Life time |
50,000 hours |
|
Guaranty |
5 years. |
Wiring:
