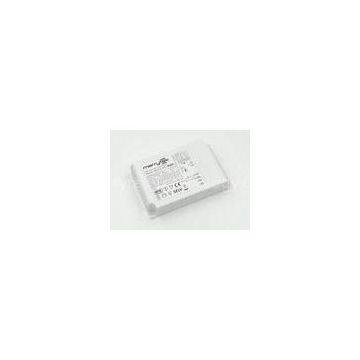

800W 120 - 277V AC Microwave Motion Sensor MC019S ETL FCC R & TTE
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Compact Size ON - OFF Microwave Motion Sensor MC008S , Detection Sensitivity 75%
-
Wall Mount 150 Detection Angle Microwave Motion Sensor , Hold Time 10s / 30s
-
Unique 15M Range Microwave Motion Sensor With 4 - Pole Press - In Terminal
-
Balcony Light Microwave Motion Sensor 5.8GHz 75MHz , ISM Wave Band
-
Small Microwave Motion Sensor MC008S E With 4 - Pole Press - In Terminal ( L , N , N , L )
-
Temperature Control ON-OFF Microwave Motion Sensor 400 Watt 82x36.5x 25.5 mm
Product Details
| Brand Name | Merrytek | Place of Origin | China | |
| Model Number | MC019S |
Product Description
Certification:ETL ,FCC, R&TTE
800W 120-277Vac Input ON-OFF Microwave Motion Sensor MC019S, ETL, FCC and R&TTE approval
Description:
1.?Automatic switching based on motion and ambient light level.
2. Without sacrificing PF of luminaries.
3.?Automatic daylight learning.
4. Zero-crossing point operation helps protect the sensor against in-rush current.
5. 5.8GHz high frequency microwave(C-Band license-free operation)
6.?4-pole press-in terminal (L, N, N,L′),easy assembly.
7.?Detection area, time delay and daylight threshold can be precisely set via DIP switch.
8. Two types of installation, suitable for different luminaries.
9.?MC019S is an innovative motion sensor, switch on the light on detection of movement, and switch off a hold time when there is no motion detected. As built-in daylight sensor can read brightness value, the sensor does not switch on the light if with sufficient in natural light.
Function:
ON-OFF function?
Detection Pattern:
Specifications:
|
Operating voltage |
120-270Vac, 50/60Hz |
|
Rated load |
Inductive:800W@227Vac,400W@120Vac |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
16m x 9m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation temperature |
-35℃~70℃ |
|
Hold time |
10s/30s/90s/3min/20min/30min |
|
Detection sensitivity |
25％/50％/75％/100％ |
|
Daylight sensor |
5lux / 10lux / 30lux / 50lux / Disable |
|
Life time |
50,000 hours |
|
Guaranty |
5 years |
|
Daylight sensor |
5lux / 10lux / 30lux / 50lux / Disable |
Wiring:
