Home > Products > Pipe Welding Rotator > 5 Ton Bolt Adjustable Steel Tank Welding Pipe Roller Rotator , Cylinder Turning Roll Machine

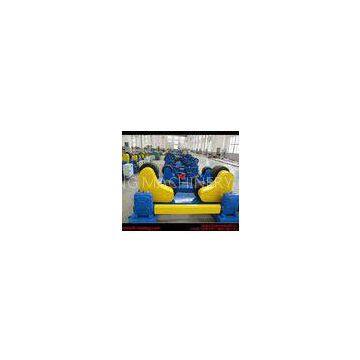

5 Ton Bolt Adjustable Steel Tank Welding Pipe Roller Rotator , Cylinder Turning Roll Machine
- T/T L/C D/P D/A
- 7 days
You May Like
-
Pressure Vessel Automatic Conventional Pipe Welding Rotator with PU Roller 10 Ton
-
Automatic Vessel Pipe Welding Rotator / Welding Roller Beds With Steel Roller
-
Industrial High Precision Pipe Welding Turning Rolls / Rotators Machine for Tank Welding
-
Bolt Adjustable Fit Up Pipe Welding Rotator For Shell 2T - 60 Ton Tank Rotator Equipment
-
5T Lead Screw Pipe Welding Rotator For Pipe Longitudinal And Circle Seam Welding
-
Conventional 10 Ton Tank Welding Rotators for Boiler Industry , PU Roller Turning Rolls
Product Details
| Brand Name | H-WELDING | Place of Origin | China | |
| Model Number | XHGK5 |
Product Description
Certification:CE
5Ton Bolt Adjustable Welding Rotator For Pipe Longitudinal And Circle Seam Welding
Specifications:
|
Model |
XHGK-2 |
XHGK-5 |
XHGK-10 |
XHGK-20 |
XHGK-40 |
XHGK-60 |
||
|
Max. loading (T) |
2 |
5 |
10 |
20 |
40 |
60 |
||
|
Vessel diameter (mm) |
150-2000 |
250-2300 |
320-2800 |
500-3500 |
600-4200 |
750-4500 |
||
|
PU roller dia.&width(mm) |
200*80 |
250*100 |
300*120 |
350*150 |
400*180 |
45*180*2 |
||
|
Metal roller dia.&width(mm) |
Option |
|||||||
|
Linear speed mm/min |
100-1000 |
|||||||
|
Speed control way |
VFD (stepless variable frequency speed control) |
|||||||
|
Motor power (KW) |
2*0.18 |
2*0.37 |
2*0.55 |
2*1.1 |
2*1.5 |
2*2.2 |
||
|
Roller center distance adjust way |
Bolt-adjustable? |
|||||||
|
One set inc. |
One power and one idle |
|||||||
| ? | ? | ? | ? | ? | ? | ? | ? | ? |
Note: For 2-100T roller is steel and rubber combination roller.For 100-500T roller is made of whole steel roller or imported rubber.
Description:
This series roller-bed features is auxiliary equipment for automatic welding. By proper adjustment, it can make work-piece at optimum welding position, 3.Attaining purpose of reducing labor intensity, improving, welding speed, guaranteeing welding quality.Applications:
1. Pipe manufacturing industries
2. Wind power fabrication
3. Chemical & fuel storage tank fabrication
Competitive Advantage:
1. The base of powered and idle welding turning rolls are the welding structure
2. It is the frame structure, scientific and reliable design.
3. Every motion part for equipment has the full lubricating system.
