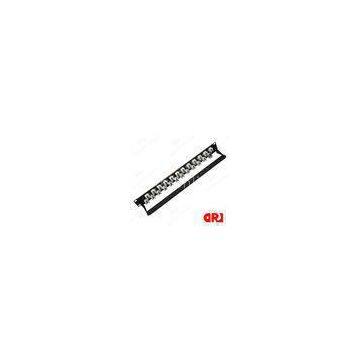

New type 45 degree 24 Ports 1U Cat6 Patch Panel with cable rack tray

New type 45 degree 24 Ports 1U ?Cat6 Patch Panel with cable rack??
?

Quick Detail:

1.Type:Category 6 ?UTP
2.Color:black
?3.IDC build -in times ≥250,RJ45 socket plug-pull times ≥750
4.Fit for 22-26AWG (0.4-0.65mm) and 5.2inch(1.27mm) cables
5.Contact: PC UL94V-0, 0.45mm(0.018\")
6.3 u\" Gold plating on contact area
?
?

Description:

?
1. The structure of each port of this patch panel is same which makes sure that the performance of each port is consistent.
2. Cable manager is combined to patch panel. All kinds of cables with different dimensions can be fixed on the patch panel.
3. T568A punching sequence and T568 B punching sequence are both compatible. Fitting for horizontal distribution in the equipments room and equipments connecting.
?
?

Electrical:

Angle:90,180 Degree
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
?
?

Specifications:
?
?
Meet TIA/EIA-568-A and TIA/EIA-568-B Category?6A requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173

?
Applications:?

?
?Mainly applied to connect equipment or distribution lines,finishing the trunk line distribution and terminal?equipment connection.?
Using the back bulid-in block to distribution lines vertically or horizontally,and through the front RJ45 jack to connect the teminal of working area to the network enchanger.
