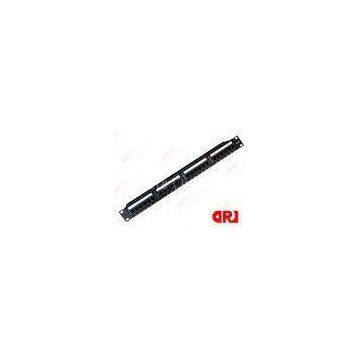

24 ports UTP Black Rj45 Cat5e Patch Panel For 19'' Network Cabinet

24 ports UTP Black Rj45 Cat5e? Patch Panel For 19\'\' Network Cabinet

Quick Detail:

1.Type:Cat5e UTP 24ports

2.Color:black ? ? ? ? ? ? ? ? ? ? ??

3.Accessories:screws/cable ties/instruction(optional)

4.IDC build -in times ≥250,RJ45 socket plug-pull times ≥750

5.Unit package:bubble wrap and box

6.Use together with:Dual type punchdown tools

7.Use to:Network date center

Description:

1)Compatible srews and cable ties make installation more easy.

2)Apply to install standard 19\" equipment bracket, case and wall mounted tow rack;

3)Various information modules provide more choice for cabling system operation;

4)Universal sequence?T568A and T568B color sequence labeled on modules clearly;

5)The design of other information modules goes beyond expected grade demand;

6)Label and embedded icons are convenient to label and manage;

7)Single-cord and multi-line pair impact tools are available.

Specifications:

1)Meet TIA/EIA-568-A and TIA/EIA-568-B Category?6A requirements.

2)Meet TIA/EIA TSB-40

3)Meet ISO/IEC Generic Cabling Standard 11801

4)Meet CENELEC Generic Cabling Standard EN50173

Materials:

Housing: PC UL94V-0

Termination: 110 Type?

IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.

PCB: FR4 1.6mm(0.04\") thickness, 2 layers

Contact: PC UL94V-0, 0.45mm(0.018\") Diameter Phosphor bronze with 3 u\" Gold plating on contact area.

Applications:

Patch management subsystem is the most important component is to achieve vertical lines and two horizontal cabling subsystem cross-connect hub.?

for Structure Cabling System

Competitive Advantage:

As a?factory,We supply goods: with stable quality ?good prices? shorter delivery time ??less minimum order quantity.

We are running?in?networking?business for nearly?10years,so our product of cabling are very rich,most? of?cabling accessories are available?with us.

All our goods are sell abroad, and we ?support our?customers with good service?? of?rich experience,which will save?much time&work.?
