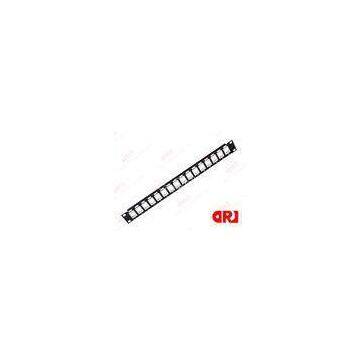

1U 16 port empty Rj45 Rack Mount Patch Panel to Support 22 - 26 AWG Solid Wire

1U 16 port empty Rj45 Rack Mount Patch Panel to Support 22 - 26 AWG Solid Wire

Quick Detail:

1.???? Type: UTP,black,16 ports

2. ? ? Standard: ISO9001,RoHS,CE,UL,ETL Approval

3. ? ??Application: network

4. ? ??IDC body:Anti-burn PC UL94V-0

5. ? ?Connector Port: rj45 socket

6. ? ?IDC contact pin:Gold-plating

Description:

1) Meets the ISO/IEC 11801,?TIA/EIA 568-B.2-1

2) Installation density and compact

3) It not only suitable for shield modular,but also suitable for unshield modular. It all depend?on the

?? customers\' demand

4) Head line clip: phosphor bronze,gold coated with the thickness of 3-50U\"(inch),we produce it according to the customers\' request.Insertion time is over 1000 times

5) IDC: phosphor bronze,nickel coated with the thickness of 50U\"(inch),insertion time is 250 tims min

6) Accept 22-26 AWG solid with a copper core diameter 0.4-0.6mm

7) Contact resistance: 7 mΩ(standard:< 20 mΩ )
??? Insulation resistance: min 7800 mΩ (standard:>100 mΩ)

8)?Pass the test of quality supervision and inspection centre of information ministry for the wired communication product

Specifications:

Meet TIA/EIA-568-A and TIA/EIA-568-B Category?6A requirements.

Meet ISO/IEC Generic Cabling Standard 11801

Meet CENELEC Generic Cabling Standard EN50173

Competitive Advantage:

As a?factory,We supply goods: with stable quality ?good prices? shorter delivery time ??less minimum order quantity.

We are running?in?networking?business for nearly?7 years,so our product of cabling are very rich,most? of?cabling accessories are available?with us.

All our goods are sell abroad, and we ?support our?customers with good service?? of?rich experience,which will save?much time&work.?

?.
