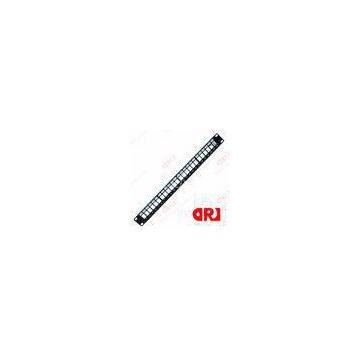

FTP Rj45 Rack Mount Patch Panel 24 Ports CAT5E / CAT6 / CAT6A

FTP Rj45 Rack Mount Patch Panel 24 Ports CAT5E / CAT6 / CAT6A

Quick Detail:

1.???? Port:24

2.???? color: Black

3. ? ??IDC Accept:22-26 AWG Solid Wire

4. ? ??Standard:ISO/IEC 11801 ,ANSI/TIA/EIA-568-B

5. ? ? Test pass: Fluck test??

6. ? ??Gold-plated:3U\" to 50U\"

7. ? ??Wire Scheme:T568A/T568B

Specifications:

1)??? Fore plate colors available: white
2)??? Transmission stability. Wholly Enclosed Shielded Patch Panel

3)??? Highly resistance and inflaming retarding plastics material, Grade UL94-0
4)??? It is applicable for 24*RJ45? Cat5e (UTP) keystone jack

5)??? Distinctive color labels on the module indicate universal wiring patterns for T568A and T568B.
6)??? Not fitted with module port can use blank dustproof stoppage, elegant appearance
7)??? Snap-in structure, Firm and easy installation reducing the installation and operation cost.

8)??? The back of the patch panel is fitted with cable manager for convenience of cable management

9)??? Cabinet designed, Label and inlaid marks for convenience of identification and supervision.

10)? Strength core and shell was insulation, add with grounding lead

11)??Module part is fitted with shield, protecting inner IDC contact from irregular working in rugged

?????? environment.

Applications:

Patch management subsystem is the most important component is to achieve vertical lines and two horizontal cabling subsystem cross-connect hub.

for Structure Cabling System

Competitive Advantage:

As a?factory,We supply goods: with stable quality ?good prices? shorter delivery time ??less minimum order quantity.

We are running?in?networking?business for nearly?7 years,so our product of cabling are very rich,most? of?cabling accessories are available?with us.

All our goods are sell abroad, and we ?support our?customers with good service?? of?rich experience,which will save?much time&work.?

?.
