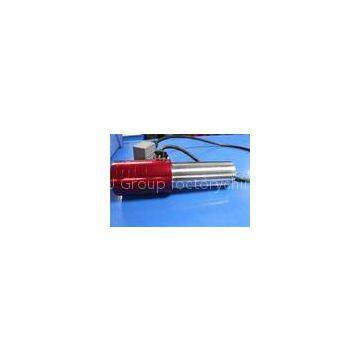

Compatible PRECISE TL60 / SC3163 High Speed Milling Spindle 10000 - 60000 rpm
USD $1400 - $2400 /
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Compatible WWD1822 200000RPM PCB Drilling Spindle CNC Machine Spindle
-
Replacement Hitachi / Lenz PCB Drilling Spindle Air Bearing Spindle
-
High Frequency 200000RPM Electric PCB Drilling Spindle ABL H920B
-
0.85KW 200V Water Cooled CNC Spindle Compatible ABL H516D / WW D1722
-
180000 RPM Precision Machining High Frequency Spindles CNC Multi Spindle
-
Small Precision Electric PCB Drilling Spindle Water Cooled CNC Spindle
Product Details
| Brand Name | KLKJ | Place of Origin | China | |
| Model Number | KL-60C-2 |
Product Description
Certification:ISO9001:2008
?
?
?
Compatible PRECISE TL60/SC3163 60,000RPM KL-60C-2 CNC High Speed Spindle PCB Routing
?
?
Quick Detail:
?
?
MODEL | NAME | DESCRIPTION | Application | Machine reference | Bearing type |
KL-60C | SPINDLE | SPEED RANGE:10,000 - 60,000 rpm High speed precision grinding | PCB Routing Optic Glasses Grinding | DALIANG RISONG ...... | Ball Bearing |
?
?
?
PRODUCT DESCRIPTION
?
MODEL:KL-60C-2
REPLACE FOR: PRECISE TL60; PRECISE SC3163
NAME :BALL BEARING SPINDLE
SPEED RANGE:10,000 - 60,000 rpm
BEARING TYPE:Ball bearing
SPINDLE WEIGHT:4.6kg
COLLET SIZE:?3.175
?
Air Pressure:≥6 kgf/cm2
Motor power:1.2KW-1.5KW
Coolant:Water oil
Coolant water temperature:20+2
Voltage:33-200V
MAX. CURRENT (A):3A
Dynamic Runout:≤8
Vibration:1.0MM/S
Temperature sensor ohms KΩ: R=10±3% AT 25℃
TORQUE(g): ?3.175≥800g
?
APPLICATION:
PCB Routing
?
Optic Grinding
?
?
| SPEED RANGE | 10,000-60,000 |
| FREQUENCY (HZ) | 167-1000 |
| MOTOR TYPE | THREE PHASE |
| MOTOR OUTPUT POWER | 1.5KW |
| TORQUE(g) | ?3.175≥800g? |
| VOLTAGE (V) | 33-200 |
| COLLET CLAMPING DIAMETER (mm) | ?3.175 |
| COLLING TEMPERATURE(°C) | 20 |
| BEARING TYPE | BALL BEARING |
| AIR PRESSURE (kg/cm2) | ≥6 |
| RUNOUT (μm) | ≤8 |
| VIBRATION (mm/s)? | ≤1.0 |
| THREE PHASE RESISTANCE (Ω) | 2.2 |
| COLLET LOCK TYPE | DEAD COLLET |
| SPINDLE WEIGHT (kg) | Around 4.6 |
| MAX. CURRENT (A) | < 5 |
| GRIP AIR PRESSURE (kg/cm2) | ≥1.5 |
| RELEASE AIR PRESSURE (kg/cm2) | ≤4.5 |
?
?
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? KL-60C-2 SPINDLE OUTLINE DRAWING
