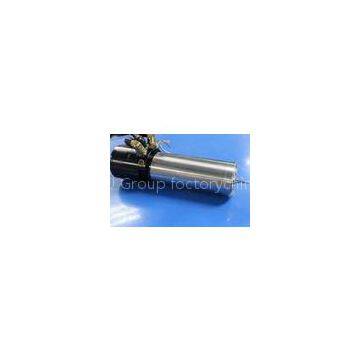

0.75KW PCB Drilling Spindle Cnc Router Motor Spindle 6.35mm - 0.05mm
- 0 Ton / Tons per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Low Dynamic High Frequency Air Bearing Spindle ABL H920B 200000RPM
-
Westwind High Frequency Spindle Shafts High Precision Spindle Shaft D1264-07
-
PCB Drilling / Routing 125000 rpm Spindle Shafts Westwind D1331-17
-
High Precision Westwind Spindle Shafts For SCHMOLL Machine D1686-10
-
D1686-16 Westwind Spindle Shafts CNC Router Spindle Shaft 180000 rpm
-
WESTWIND WWD1822 200000RPM Water Cooled CNC Spindle Motor For HITACHI / LENZ Machine
Product Details
| Brand Name | KLKJ | Place of Origin | China | |
| Model Number | KLAB160C |
Product Description
Certification:ISO9001:2008
Compatible ABL H916C KLAB160C 160,000RPM KLAB160C PCB Drilling Spindle?
Quick Detail:
|
MODEL |
REPLACE FOR |
DESCRIPTION |
Application |
Machine reference |
|
KLAB160C |
H916C |
SPEED RANGE:20,000 - 160,000 rpm ?6.35mm-0.05mm precision drilling |
PCB PRECISION DRILLING |
KLINGINBERG PLURITEC HITACHI LENZ ANDERSON …. |
PRODUCT DESCRIPTION
KLAB160C high frequency?spindle replace for ABL H916C Full Range from 20,000 to 160,000 rpm, air bearing type in long life, spindle weight 3.2kg with COLLET size ?1/8” and body size ? 61.9
Max power:0.75KW
Coolant:Water oil
Fixed voltage:215V
Fixed current:3A
Static Runout:<2μm
Dynamic Runout:<8μm
Vibration:1.0MM/S
Competitive Advantage:
Low Static
Low Dynamic RUN OUT
Stable character and long life
Suitable for precision drilling
Air bearing type offer Greater Precision, High Speed , Increased Tool Life, Improved Surface Finish, Long Bearing Life, Low Thermal Growth, Lack of Maintenance, Large Load Capacity , Reduced Vibration , Cleanliness
APPLICATION :
PRINT CIRCUIT BOARD PRECISION DRILLING
HOLE RANGE: ?6.35mm-0.05mm
MACHINE REFERENCE:KLINGINBERG PLURITEC ；HITACHI ；LENZ ；ANDERSON ….
SPECIFICATION:
|
Static runout |
<2μm |
|
Dynamic runout |
<8μm |
|
Collet torque(N.cm) |
>=125( 1/8”) |
|
Vibration |
1.0MM/S |
|
Collet size |
?1/8” |
|
Temperature sensor ohms KΩ |
R=10±3% AT 25℃ |
|
Open air pressure |
<4.5 kg/cm2 |
|
Close air presure |
>2.5 kg/cm2 |
|
Coolant water flux |
>1.4(L/min) |
|
Coolant oil flux |
>2.7(L/min) |
|
Air consume flux |
45(L/min) |
|
Radial load |
5.5kgf |
|
Air Pressure |
6.0 kgf/cm2 |
? ? ? ? ? ? ? ? ? ? ?KLAB160C SPINDLE OUTLINE DRAWING
? ? ? ? ? ? ? ? ? ? ? ? ?QUALITY COMMENT FROM CUSTOMER
