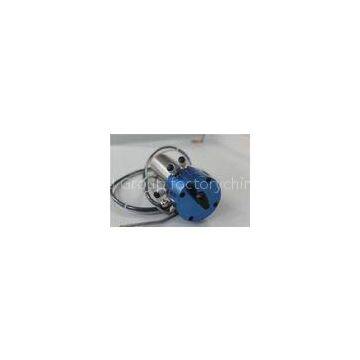

Precision Electric PCB Drilling Spindle With 4-6 HEAD , 6.35mm - 0.05mm

Compatible WESTWIND WWD1822 200,000RPM KL200P Air Bearing Spindle PCB PRECISION DRILLING?

Quick Detail:

PRODUCT DESCRIPTION

KL200P common standard body style and tool holding system spindle replace for WESTWIND WW D1822 Full Range from 20,000 to 200,000 rpm, air bearing type in long life, spindle weight 3.9kg with Diameter tool 3.175mm and body size ? 61.9,Max power 0.85KW, Collet torque(N.cm) >13.

The Parameter of KLAB160C?

Air Pressure: 6.0 -6.5kgf/cm2

Coolant: Water oil

Fixed voltage: 200V

Fixed current: 3A

FREQUENCY (HZ): 334-3350

PTC or NTC Sensor for choose

Wine wave or Square wave available

Competitive Advantage:

Low Static

Low Dynamic RUN OUT

Stable character and long life

Power and very low heat generation

Good slot and big hole drilling

Less running costs

ATC feeder / ATC tool change for micromachining

Environment friendly

KLKJ Advantage

The higher spindle speeds available allow for increased productivity whilst ensuring that accuracy and repeatability is maintained.

Advanced analysis and detailed design has created a spindle with exceptional reliability and increased efficiency.

KLKJ increased productivity and efficiency available allows mass production drilling and routing spindle.

APPLICATION?

PRINT CIRCUIT BOARD PRECISION DRILLER

2 HEAD OR 4 -6 HEAD DRILLER

HOLE RANGE: ?6.35mm-0.05mm

MACHINE REFERENCE: SCHMOLL POSALUX KLG PLURITEC KLINGEINBERG LENZ EXCELLON HITACHI

SPECIFICATION:

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??Compatible D1822 200,000RPM KL200P SPINDLE DRAWING

Why choose KLKJ?

With nearly 15 years technology in spindle maintenance, 10 years success experience for spindles parts production, and 9 years spindle R&D, KLKJ succeed in offer air bearing spindle up to 200krpm.

All spindles at the KLKJ are fully checked and tested using stringent quality control procedures. KLKJ ensures every repaired spindle passes the following points to make it in long life and stable character:

1.???? Air flow

2.???? Water flow

3.???? End float/lift off

4.???? Axial load (inner)

5.???? Axial load (outer)

6.???? Torque
