Home > Products > CNC High Speed Spindle > PRECISE CNC High Speed Spindle Process Cellphone Touch Screen Glass

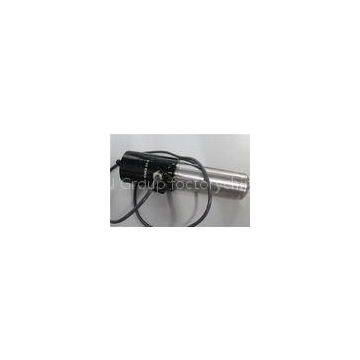

PRECISE CNC High Speed Spindle Process Cellphone Touch Screen Glass
- 0 Square Meter / Square Meters per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Compatible PRECISE TL60 / SC3163 High Speed Milling Spindle 10000 - 60000 rpm
-
Compatible WWD1822 200000RPM PCB Drilling Spindle CNC Machine Spindle
-
Replacement Hitachi / Lenz PCB Drilling Spindle Air Bearing Spindle
-
High Frequency 200000RPM Electric PCB Drilling Spindle ABL H920B
-
0.85KW 200V Water Cooled CNC Spindle Compatible ABL H516D / WW D1722
-
180000 RPM Precision Machining High Frequency Spindles CNC Multi Spindle
Product Details
| Brand Name | KLKJ | Place of Origin | China | |
| Model Number | KL60C |
Product Description
Certification:ISO9001:2008
?
60,000RPM KL60C CNC High Speed Spindle For Moble phone Touch Screen Glass-Process
?
Quick Detail:
?
?
|
MODEL |
NAME |
DESCRIPTION |
Application |
Bearing type |
|
KL-60C |
SPINDLE |
SPEED RANGE:10,000 - 60,000 rpm High speed precision grinding |
GLASS GRINDING/ENGRAVING |
Ball Bearing |
?
?
?
PRODUCT DESCRIPTION
?
MODEL:KL-60C
NAME :BALL BEARING SPINDLE
SPEED RANGE:10,000 - 60,000 rpm
BEARING TYPE:Ball bearing
SPINDLE WEIGHT:4.6kg
COLLET SIZE:?6
?
Air Pressure:≥6 kgf/cm2
Motor power:1.2KW-1.5KW
Coolant:Water oil
Coolant water temperature:20+2
Voltage:33-200V
MAX. CURRENT (A):3A
Dynamic Runout:≤8
Vibration:1.0MM/S
Temperature sensor ohms KΩ: R=10±3% AT 25℃
TORQUE(g): ?6≥1500g
?
Competitive Advantage:
LOW STATIC
LOW DYNAMIC RUN OUT
STABLE CHARACTER AND LONG LIFE
SUITABLE FOR MOBILE TOUCH SCREEN GLASS-PROCESS
WATER -PROOF
?
?
APPLICATION
?
MOBILE TOUCH SCREEN GLASS-PROCESS?
?
?
SPECIFICATION:
?
?
| SPEED RANGE | 10,000-60,000 |
| FREQUENCY (HZ) | 167-1000 |
| MOTOR TYPE | THREE PHASE |
| MOTOR OUTPUT POWER | 1.5KW |
| TORQUE(g) | ?6≥1500g |
| VOLTAGE (V) | 33-200 |
| COLLET CLAMPING DIAMETER (mm) | ?6 |
| COLLING TEMPERATURE(°C) | 20 |
| BEARING TYPE | BALL BEARING |
| AIR PRESSURE (kg/cm2) | ≥6 |
| RUNOUT (μm) | ≤8 |
| VIBRATION (mm/s)? | ≤1.0 |
| THREE PHASE RESISTANCE (Ω) | 2.2 |
| COLLET LOCK TYPE | DEAD COLLET |
| SPINDLE WEIGHT (kg) | Around 4.6 |
| MAX. CURRENT (A) | < 5 |
| GRIP AIR PRESSURE (kg/cm2) | ≥1.5 |
| RELEASE AIR PRESSURE (kg/cm2) | ≤4.5 |
?
?
?
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? SPINDLE OUTLINE DRAWING
?
?
?
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? COMMENT FROM CUSTOMER ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??
?
