86mm Nema 34 Step Motor Low or High speed 1.2, 86BYGH with 3 phase for Industrial
- T/T L/C D/P D/A
- 7 days
You May Like
-
Three phase Nema Stepper Motor high torque 57mm for robot , printer
-
CNC Hybrid Stepper Motors 2 Phase , nema 34 57BYGH Low / high speed
-
Industrial Nema Stepper Motor Hybrid 6 Lead , 57MM 1.8 degree
-
Bipolar / unipolar NEMA 17 Stepper Motors High speed , 2 Phase 39BYGH
-
NEMA 16 Hybrid Stepper Motors 1.8 Degree with High Torque , 2 phase 39MM
-
1.8 Nema Stepper Motor two Phase 57BYGH with encoder for Cnc router
Product Details
| Brand Name | JK | Place of Origin | China | |
| Model Number | JK86H3P |
Product Description
Certification:CE,ROHS ,ISO9001

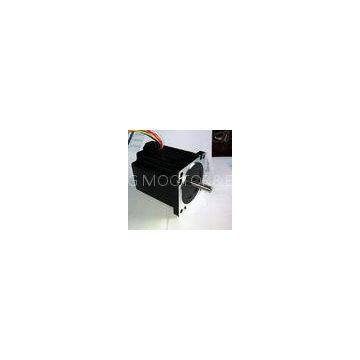

86mm Nema Stepper Motor Low or High speed 1.2°, 86BYGH with 3 phase for Industrial
?? Nema 34 Hybrid Stepper Motor ??? Model Number: JK86H3P ??? Phase: 3 Phase ??? Structure: Hybrid ??? Step Angle:? 1.2° ??? Motor Height:86mm ??? Holding Torque: 2 N.m - 7N.m ??? Function: Control ??? Speed: Low or High speed ??? Usage: Industrial ??? Shape: Square ? ??? Applications:Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motor?1.2°86mm 3phase Square hybrid stepper motor? NEMA 34/ 86BYG350 step motor/ 1.5N.M stepping motor/0.9N.m step motor
Description:
NEMA34 stepping motor , 86mm 3 Phase square stepper motor .
45kg.cm Stepper motor , high torque stepper motor with 86mm size .
60kg.cm stepping motor,
Applications:
Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor , printer stepper motor, textile machinery stepper motor.
Cnc router stepper motor.
Specifications:
|
Model No. |
Step Angle |
Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
Rotor Inertia |
Mass |
|
( °) |
(L)mm |
A |
Ω |
mH |
N.m |
g.cm2 |
Kg |
|
|
JK86H3P65-3006 |
1.2 |
65 |
3 |
0.5 |
1.6 |
2 |
1100 |
1.65 |
|
JK86H3P98-5206 |
1.2 |
98 |
5.2 |
0.6 |
3 |
4.5 |
2320 |
2.70 |
|
JK86H3P113-5206 |
1.2 |
113 |
5.2 |
0.9 |
5.9 |
6 |
3100 |
3.50 |
|
JK86H3P150-5006 |
1.2 |
150 |
5.0 |
1.5 |
3 |
7 |
4650 |
5.10 |
Dimensions:
(Unit=mm)
Wiring Diagram:
Matching Stepper motor Driver: JK3M860
