Home > Products > Hybrid Stepper Motors > Two Phase Hybrid Stepping Motors 6 wire , NEMA 11 28BYGH 1.8

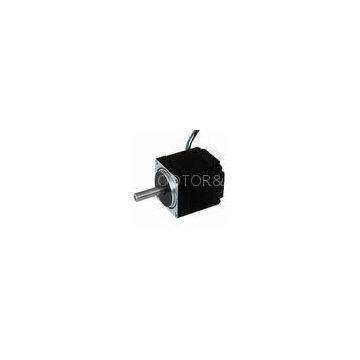

Two Phase Hybrid Stepping Motors 6 wire , NEMA 11 28BYGH 1.8

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	JK		Place of Origin	China
Model Number	JK28HS,28BYG

Product Description

Delivery Time:FOR SAMPLES , 7-10 days For batch . 15-25days.
Certification:CE,ROHS ,ISO9001

Two Phase Hybrid Stepping Motors 6 wire , NEMA 11 28BYGH 1.8°

Nema 11 Hybrid Stepper Motor Model Number: JK28HS,28BYG Phase: 2 Phase Lead Wire (No.): 4 or 6? wire Structure: Hybrid Step Angle: 1.8° Holding Torque:430 - 1200 g.cm Motor Height: 28 mm Function: Control Speed: Low / High speed Shape: Square ? Applications:Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motor.

1.8°28mm 2phase hybrid stepper motor? NEMA11/ NEMA11 28mm stepping motor/ 28mm size stepper motor for medical equipment/ monitoring equipment stepper motor

Description:

1.8 degree Size 28mm High Torque Hybrid stepper motor.

28mm size stepper motor ,

NEMA11 stepping motor,

Small stepping motors,

2 phase 28mm stepper motor

Stepper motor 28mm size

Hybird Stepper Motors
1) CE and RoHS approved
2) We can develop customer? design version

Applications:

Use for robots stepper motor,electronic automatic equipment stepping motor ,medical instrument stepping motor, advertisement instrument stepper motor,lighting&audio equipment stepper motor ,printer stepper motor,textile machinery stepper motor.

Cnc router stepper motor.

Specifications:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Rotor Inertia	Motor Weight
( °)	(L)mm	A	Ω	mH	g.cm	No.	g.cm2	Kg
JK28HS32-0956	1.8	32	0.95	2.8	0.8	430	6	9	0.11
JK28HS32-0674	1.8	32	0.67	5.6	3.4	600	4	9	0.11
JK28HS45-0956	1.8	45	0.95	3.4	1.2	750	6	12	0.14
JK28HS45-0674	1.8	45	0.67	6.8	4.9	950	4	12	0.14
JK28HS51-0956	1.8	51	0.95	4.6	1.8	900	6	18	0.2
JK2
