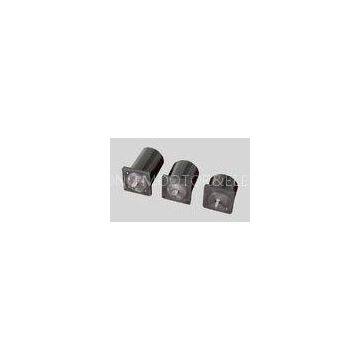

5 Phase Hybrid Stepper Motors 90MM with Low or High speed for robot
- T/T L/C D/P D/A
- 7 days
You May Like
-
Industrial Nema Stepper Motor 3phase 86mm with high voltage 86BYGH
-
Electronic Hybrid Stepper Motors 3 phase 110BYGH 110 Volt 1.2 degree
-
1.2 Degree Hybrid Stepper Motors High torque 130BYGH with 3 phase NEMA 52
-
1.2 hybrid stepper motor Nema 42 3 phase 110mm 110v for robots
-
Electronic Hybrid Nema Stepper Motor Round 90mm 1.2 for textile machinery
-
86mm Nema 34 Step Motor Low or High speed 1.2, 86BYGH with 3 phase for Industrial
Product Details
| Brand Name | JK | Place of Origin | China | |
| Model Number | 90BYG550 |
Product Description
Certification:CE,ROHS ,ISO9001
5 phase Hybrid Stepper Motors 90BYGH with Low or High speed for robot
? Model Number:90BYG550 ? Phase: 5 Phase ? Structure: Hybrid ? Step Angle:? 0.72° ?? Holding Torque: 3.5 N.m- 7.5 N.m ? Function: Control ? Speed: Low or High speed ? Usage: Industrial ? Shape: round ? Certification: CE, ROHS, ISO9001 ? Applications:Use for robots stepper motor, electronic automatic equipment stepping motor ,? medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motorApplications:
Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,dvertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motor.
Specifications:
|
Model No. |
Step Angle |
Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
rated Voltage |
Holding Torque |
Motor Weight |
|
( °) |
(L)mm |
A |
Ω |
mH |
V |
N.m |
Kg |
|
|
90BYG550A |
0.72 |
86 |
3 |
0.68 |
2.8 |
60-130 |
3.5 |
3.2 |
|
90BYG550B |
0.72 |
116 |
3 |
0.93 |
4.7 |
60-130 |
5.5 |
4.6 |
|
90BYG550C |
0.72 |
146 |
3 |
1.21 |
7.5 |
60-130 |
7.5 |
5.8 |
Dimensions:
(Unit=mm)
Wiring Diagram:
Matching Stepper motor Driver:
