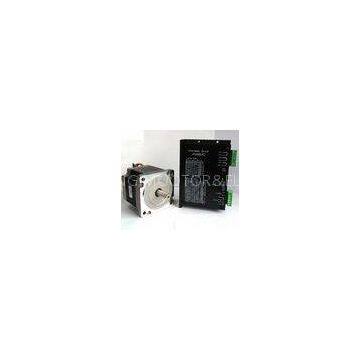

4 Wire Hybrid Stepper Motors Bipolar / Unipolar NEMA 34 With High Speed

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	JK		Place of Origin	China
Model Number	JK86HS, 86BYGH,85BYGH

Product Description

Delivery Time:FOR SAMPLES , 7-10 days For batch . 15-25days.
Certification:CE,ROHS ,ISO9001

4 Wire Hybrid Stepper Motors Bipolar / Unipolar NEMA 34 With High Speed

Nema 34 Hybrid Stepper Motor Model Number: JK86HS, 86BYGH,85BYGH Phase: 2 Phase Lead Wire (No.): 4 or 8 wire Structure: Hybrid Step Angle: 1.8° Motor Height: 86 mm Holding Torque: 3.4 N.m - 12.2 N.m Function: Control Speed: Low / high speed Shape: Square ? Applications:Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motor.

NEMA34 high torque stepper motor? 1200oz.in , bipolar and unipolar stepping motor,? 640oz.in 2phase NEMA34 stepper motor, 465oz.in high torque step motor, 85BYGH450A-06 ,85BYGH450B-06D-34J,85BYGH450C-03A step motor

Description:

NEMA34 stepping motor , 86mm 2 Phase square stepper motor .

42kg.cm Stepper motor , high torque stepper motor with 86mm size .

86kg.cm stepping motor, 12.5N.m stepper motors ?

Applications:

Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.

Cnc router stepper motor.

Specifications:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
( °)	(L)mm	A	Ω	mH	N.m	No.	Kg.cm	g.cm2	Kg
JK86HS67-5904	1.8	67	5.9	0.28	1.7	3.4	4	0.8	1000	1.7
JK86HS67-2808	1.8	67	2.8	1.4	3.9	3.4	8	0.8	1000	1.7
JK86HS78-5504	1.8	78	5.5	0.46	4	4.6	4	1.2	1400	2.3
JK86HS78-4208	1.8	78	4.2	0.75	3.4	4.6	8	1.2	1400	2.3
JK86HS115-6004	1.8	115	6.0	0.6	6.5
