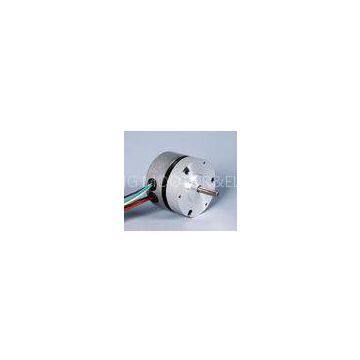

57mm dc Electric brushless motor BLDC with 3 Phase 36 Volt JK57BLS

Winding type

Delta

Hall effect angle

120 degree electrical angle

Shaft run out

0.025mm

Radial play

0.025mm@460g

End play

0.025mm@4000g

Max. radial force

75N @ 20mm from the flange

Max. axial force

15N

Insulation class

Class B

Dielectric strength

500VDC for one minute

Insulation resistance

100MΩMin., 500VDC

Model???

?JK57BL(S)005

JK57BL(S)01

JK57BL(S)02

JK57BL(S)03

JK57BL(S)04

Number of poles

4

Number of phase

3

Rated voltage????????? VDC

36

Rated speed?????????? ?RPM

4000

Rated torque?????????? N.m

0.055

0.11

0.22

0.32

0.43

Rated power????????? ??W

23

46

92

133

180

Peak torque?????????? ?N.m

0.16

0.39

0.7

1

1.27

Peak current?????????? A

3.5

6.8

11.5

16.5

20.5

Line to line resistance??? ohms

4.1

1.5

0.7

0.45

0.35

Line to line inductance?? mH

10

4.2

2.16

1.4

1

Torque constant?????? ??Nm/A

0.053
