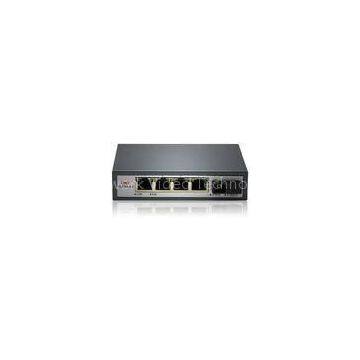

4 port Fiber Optic Media Converter single mode to multimode converters
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Gigabit Power over Ethernet splitter 5v and 12v for IP camera
-
1.6 Gbps 4 Port PoE Switch 10M / 100M PoE Ethernet Switches For Security Protection
-
16 Port 15.4W 802.3af PoE Switch with 2 Gigabit SFP Combo port
-
120 Watts 8 Port PoE Ethernet Switch , IEEE 802.3af 24 Gbps Power Over Ethernet
-
IEEE 802.3at 8 port Gigabit POE Switch for High Speed Dome Survelliance Network
-
10 Mbps / 100 Mbps IEEE802.3af PoE Ethernet Switch 8 Port PoE Switches
Product Details
Brand Name | ONV | Place of Origin | China | |
Model Number | ONV8104-SCX-O |
Product Description
Certification:CE, FCC, RoHS, ISO
10M / 100 Mbit/s Media Converter 4 Ethernet Interface For Dynamic Data Transmission
Quick Detail:
Name: fiber optic media converter, optical media converter
Fiber Mode: single mode or multi mode
Ethernet interface: 4.
Transmission Distace: 2/20/40/60/80/100km are optional
Transmit mode: IEEE 802.3,IEEE 802.3u,IEEE 802.3x.
Interface Speed Rate: 10 / 100 Mbit/s
Application: dynamic data transmission,electric link and light links diagnosis.
Transmission Distance: 20km / 40km.
Wavelength: 850nm / 1310nm.
Communication Mode: Full-Duplex & Half-Duplex.
Power supplier:2.5 w(Input:DC5V 1000mA).
>10/100M series of fiber optic transceivers can be use between 100Base-TX cable and 100Base-FX fiber cable or 10Base-T cable and 10Base-FL fiber cable for the data transmission usage.
>Suitable for intelligent community, it extend the network transmission from 100m to100Km. Also it can be realize the interconnection between motherboard server, Repeaters, hubs, switches, terminal.
>Plug and play design makes easy installation, no on-site adjustment, All the light, electricity interfaces are in line with international standards, Products applicable to different harsh industrial environment.
Features:
- provide four routes-speed Ethernet 10/100 M pathway
- Ethernet 10 Base-T or 100 Base-TX to 100Base-FX fiber media converters
- support IEEE 802.3, IEEE 802.3U, IEEE 802.3X, IEEE 802.1d
- Ethernet support, I rate since consultations with duplex mode, parallel / crossover line adaptive function or compulsory mode
- support 10 Mbps and 100 Mbps automatically adapt to (work full-duplex bandwidth of 200 Mbps)
- provide remote diagnosis of link loss, I, I-Link and Link connecting diagnostic, dynamic data transmission, full-duplex / half-duplex, the rate indicator
- support long frame transmission, and expansion of the various agreements is fully compatible with data frames transmitted
- dual 10/100 Ethernet access, fully physical isolation. The same path of the two optical fiber transmission line network
- support optical path interruption transfer function, can be transmitted to the interruption-alarm equipment
- offer dual / single fiber transmission, and different wavelength LED optical power, and other interface configuration
- veteran of the status indicators, can be easily and accurately understand the interface, link the work of state
-comprehensive after-sales service to provide three years of quality assurance and maintenance services for life
-Special apperance, the demision is 120mm×86mm×26mm
Target Industries:
- Intelligent transportation supervisory system(ITS)
- High-speed Way supervisory/Tele-Communication System)
- Large corporations, network security monitoring system, multi-function system
- Long-distance Muti-media Schooling, Campus monitoring, long-distance broadcast television transmission system?
Fiber Features:( the fiber optic connectors usually is SC, can order ST or FC)?
Type |
TX wavelength |
TX power |
Distance Km |
Lose dBm/Km |
Allowable loss dBm |
Fiber type |
Multi-mode |
850 |
-19.5~-16 |
0~2 |
3 |
12 |
850nm (Multi-mode) |
1310 |
-19.5~-16 |
0-3 |
1 |
12 |
1310nm (Multi-mode) |
|
Single-mode |
1310 |
-12~-7 |
0~20 |
0.5 |
16 |
Single-mode(9/125um) |
1310 |
-8~-5 |
0~40 |
0.5 |
20 |
|
