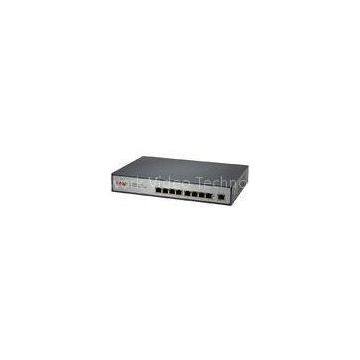

IEEE 802.3at PoE Ethernet Switch 10 Mbps / 100 Mbps 220W With 9 Ports

Detailed Product Description

IEEE 802.3at PoE Ethernet Switch 10 Mbps / 100 Mbps 220W With 9 Ports

Quick Detail:

Name: POE Ethernet Switch, Power Over Ethernet Switch

PoE Ports: 9

Transmission Rate: 10 /100 Mbps

Ethernet Standards: IEEE 802.3at

PoE Power Output: 25.5 Watts

PoE Budget: 220 Watts

Bandwidth: 1.6 Gbps.

Communication Mode: Full-Duplex & Half-Duplex.

Function: POE, SNMP, VLAN Support

>The PoE Switch POE31008P-at provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The five Fast Ethernet ports can be used for any 10/100 Mbps link and four of these ports can supply industry-standard IEEE 802.3at power.

>Advanced auto-sensing algorithm gives power only to IEEE802.3at end devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the PoE Switch POE31004P-at automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink?.

Product features

- IEEE 802.3at power on up to?8 ports
- Supply power to wireless access points and surveillance cameras over Cat-5 cabling
- 9 10/100 Mbps Ports with AutoUplink?
- Supports PoE power up to 25.5W for each PoE port
- Supports PoE power up to 210W for all PoE ports
- Supports PoE IEEE 802.3af / at compliant PDs
- Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
- 1K entry MAC address table of the PoE Switch POE31008P-at with auto-learning and auto-aging
- LED indicators for monitoring power, link, activity and speed
- External power adapter supply?

Target Industries

-HD monitor transmission and power supply
-Wireless AP layout transmission and power supply
-Network telephone transmission , intelligent house and home
system
-Intelligent transportation supervisory system(ITS)
- High-speed Way supervisory/Tele-Communication System
- Security protection system, TV medical treatment
- Long-distance Muti-media Schooling, Campus monitoring
- Long-distance broadcast television transmission system
- High-building Security Protection, Military Tele-Com projects

Specifications
