16 Channel Fiber Optic Video Transmitter for TV medical treatment

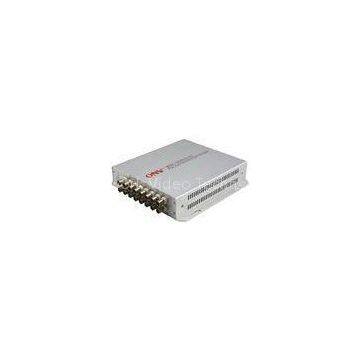

16 Channel Video Optical Transmitter

Quick Detail:

Product Name: 16 Channel video optical Transmitter

16 channel video, optical fiber, SM and MM.

20-100km

Audio, Ethernet, RS485/422 DATA, Ethernet and Alarm are optional

Perform synchronous, undistorted, uncompressed high quality signal transmission installed independently can installed in 2U/4U

Features

?Card-type?or?Stand-alone?type?for?your?choice;?suitable?for?concentration?management?in?2U?Racks
?10?–digit?coding?and?non-compression?video?transmission
?supporting?any?high?–resolution?video?signal?
?automatically?compatible?with?PAL,?NTSC?and?SECAM?video?format?
?Supporting?video?intact?regenerative?relay,?the?video?transmission?can?be?reach?above?200km
?Supporting?advanced?SNMP?standards,?realise?long-distance?web-controlling
?LED?indication?of?power?and?other?parameter?status,?monitoring?real-time?operation
?Modularized?and?industrialized?design?ensuring?reliability?and?flexibility

Target?Industries

?Intelligent?transportation?supervisory?system(ITS)
?High-speed?Way?supervisory/Tele-Communication?System
?Security?protection?system,?TV?medical?treatment

?Long-distance?Muti-media?Schooling,?Campus?monitoring
?Long-distance?broadcast?television?transmission?system
?High-building?Security?Protection,?Military?Tele-Com?projects

Fiber?Features:?(?the?fiber?optic?connectors?usually?is?FC,?can?order?ST)

Video?Feature

Video?Interface:?BNC
Video?input/output?impedance:?75Ω?(unbalanced)
Video?input/output?Voltage:?1VP?-?P?(peak?value),?Max?1.2Vpp
Video?Bandwidth:?10MHz
Video sampling:?15MHz?high?speed?sampling
Video?digit?bit?width:?10/12?bit
Differential?gain:?(?10%-90%APL)?DG?<1%(?Typical?value)
Differential?phase:?(?10%-90%APL)?DP?<0.7°(?Typical?value)
Video?SNR:?S/N?≥?70dB?(Maximum?optical?link?path?loss)?

General?Parameter
Operating?Temperature:?-40?°C~+85?°C?
Storage?Temperature:?-45?°C~+95?°C
Relative?humidity:?0~95%?(Non-condensing)
Stand-alone?and?card?types?are?available
Power?Voltage:?AC85-260v/50Hz?
MTBF:≥105?hours
Power?supplier:2.5?w(Input:DC5V?1000mA)
