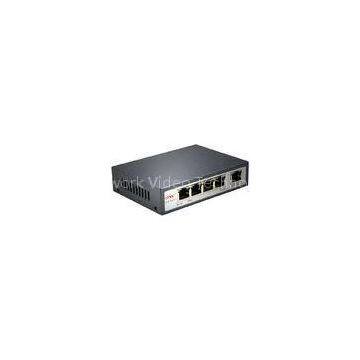

5 Port IEEE 802.3af PoE Ethernet Switch 10M / 100M With 4 Port PoE & 1 Port Fiber
- T/T L/C D/P D/A
- 7 days
You May Like
-
IEEE 802.3at PoE Ethernet Switch 10 Mbps / 100 Mbps 220W With 9 Ports
-
1.6 Gbps 802.3at PoE Switch 8 Ports PoE Ethernet Switches With Fiber Port
-
24 Port Web Smart PoE switch Managed PoE Switches with AutoUplink
-
Gigabit DC PoE Power Injector 48v IEEE 802.3af With RJ45 Port
-
10 / 100M PoE Power Injector IEEE 802.3at High Power With Plug-And-Play Design
-
802.3af 4 Port Gigabit PoE Power Injector fupply power for IP camera
Product Details
| Brand Name | ONVI | Place of Origin | China | |
| Model Number | POE31004PF |
Product Description
Certification:CE, FCC, RoHS, ISO
5 Port IEEE 802.3af PoE Ethernet Switch 10M / 100M With 4 Port PoE & 1 Port Fiber
5-Port 10/100M Switch
4-Port POE and 1-Port Fiber
type:POE31004PF
POE Distance:100m
>The PoE Switch POE31004PF provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The four RJ45 network ports + one fiber port can be used for any 10/100 Mbps link and four of these ports can supply industry-standard IEEE 802.3af power.
>Advanced auto-sensing algorithm gives power only to IEEE802.3af end devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the PoE Switch POE31004P automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink?.
Product features
◆ IEEE 802.3af power on up to 4 ports
◆ Supply power to wireless access points and surveillance cameras over Cat-5 cabling
◆?4 10/100 Mbps Ports with AutoUplink?
◆The 5? port? is optical fiber SC interface of 155 Mbps?
◆ Supports PoE power up to 15.4W for each PoE port
◆ Supports PoE power up to 53W for all PoE ports
◆ Supports PoE IEEE 802.3af compliant PDs
◆ Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
◆ 1K entry MAC address table of the PoE Switch POE31004P with auto-learning and auto-aging
◆ LED indicators for monitoring power, link, activity and speed
◆ External power adapter supply?
Target Industries
◆HD monitor transmission and power supply
◆Wireless AP layout transmission and power supply
◆Network telephone transmission , intelligent house and home
system
◆Intelligent transportation supervisory system(ITS)
◆ High-speed Way supervisory/Tele-Communication System
◆ Security protection system, TV medical treatment
◆ Long-distance Muti-media Schooling, Campus monitoring
◆ Long-distance broadcast television transmission system
◆ High-building Security Protection, Military Tele-Com projects
Specifications
|
Product |
5-Port 10/100M Switch with 4-Port POE and 1-Port Fiber |
|
Typ |
POE31004PF |
|
Network Ports |
4 10/100Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX |
|
1 155Mbps SC Ports Single-mode optical fiber |
|
|
Power Pin Assignment |
Data provided over pairs over 1/2and 3/6 ,Power over |
|
PoE Distance |
100m |
|
Transmission Method |
Store-And-Forward |
|
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
|
100BASE-TX: UTP category 5, 5e cable (maximum 100m) |
|
|
Single-mode optical fiber (Single fiber or double fiber |
|
|
Performance Specifications |
Bandwidth:1.6 Gbps |
|
Network latency:Less than 20 μs for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission |
|
|
Buffer memory:96 KB embedded memory per unit |
|
|
Address database size:1,000 media access control (MAC) addresses per system |
|
|
Addressing:48-bit MAC address |
|
|
Mean Time Between Failure (MTBF):190,000 hours (~ 21 years) |
|
|
Acoustic Noise: 0 dB |
|
|
Network Protocol and Standards |
IEEE?802.3i?10BASET |
|
IEEE?802.3u?100BASETX |
|
|
IEEE?802.3x?Flow?Control |
|
|
IEEE?802.1af?DTE?Power?via?MDI |
|
|
IEEE?802.3af? |
|
|
Status LEDs |
System: Power, PoE Maximum Power |
