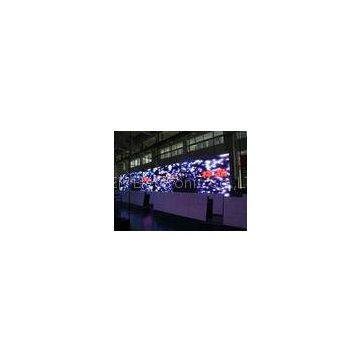

Waterproof DIP LED Advertising Displays , P20 Outdoor LED Display Screen >6500cd/

Part Number

TeehoLED -P20

Resolution

16(H)×8(V)

Pixel Pitch

20mm

LED Configuration

1R1G1B - DIP

Pixel Density

2,500 pixels/ ㎡

Module Size

320×160mm

Cabinet Size

1280×960mm, 960×960mm, etc.

Driving IC

MBI5024

Driving Method

Static State, Constant Current

Weight

58KG/sq.m.

Mechanical Ratings

Hanging Weight Support

2T

Surface Flatness

Gap<0.5mm

Optical Ratings

Brightness

>6,500cd/ ㎡

View Angle

120°/60°

Gray Scale

8bits input, correction with 14bits

Display COLOR

16.7M

Brightness Adjustment

0～100% 10 level

Power Supply

Operation Power

90～260V 50～60Hz

Max. Power Consumption

1000W/ ㎡

Average Power Consumption

300W/ ㎡

Control System

Control Mode

Synchronous display with control PC by DVI

Frame Update Frequency

60～85Hz

Screen Refresh Frequency

300～1000Hz

Gamma Correction

-5.0～+5.0

Support Input

Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

Control Distance

Ethernet cable<120m or Fiber Optic<10Km

Support VGA Mode

1024×768, 1280×1024, 1600×1200, 1920×1280

Brightness Correction

Pixel, Module, Cabinet

Environmental

Operating Temperature

-20°～+60°

Operating Humidity

10～95% RH

Operating Life

100,000hours

MTBF

5000hours

Protection Level

IP65

Out of Control Rate

<0.02%
