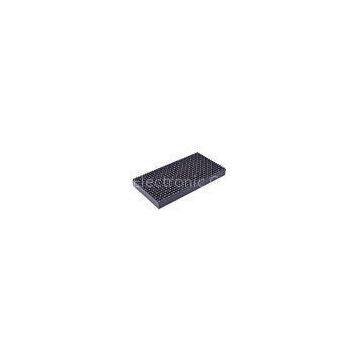

Outdoor Virtual LED Display Module (P16)

Feature and Advantage
1. Waterproof and dustproof: IP68front, IP65back
2. Best viewing distance: 10-300m
3. White balance brightness: More than10, 000CD/sqm
4. Horizontal viewing angle: 120degree
5. Working temperatue: -20degree-+80degree
6. MTBF: More than 10, 000hours
7. Life span: More than 100, 000hours
8. Contrast ratio: 4000: 1
9. Average power consumption: 500W
Application and Market
1. Application
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
Our service1. Your inquiry related to our products or price will be replied in 24hrs2. OEM&ODM, any your customized lightings we can help you to design and put into product3. Distributoership are offered for your unique design and some our current models4. Protection of your sales area, ideas of design and all your private information5. Top quality+Reasonable price+Responsible After Service=Successful & Win
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 7years
6. Delivery time: 3-12working days
v id=\"StyleTableProd\">

Description	Technical? parameter
Unit? module	Module? size	256*128mm
Pixel? pitch?	16mm
Pixel? density	3904dots/m2
Pixel? configuration	2R1G1B
Led? specification	?| 5ellipse
Pixel? resolution	W: 16dots*H: 8dots
Cabinet	Dimension	1024mm*768mm*110mm?
Quantities? of? module	24pcs
Power? supply	5pcs
Thermal? discharge	Fan*2pcs
Total? weight	55kg
Best? viewing? angle	12-300m
Temperature	Storage: ? -35degree~+85degree
Working: ? -35degree~+85degree
Thickness	11cm? can? adjustable
Remarks: ? cabinet? size? can? changed, ? upon? project? need.
Power	Working? voltage	AC220V/110V± 10%
Average? power? consumption	500W
Max. ? Power? consumption	a‰¤ 1000W/sqm
Current	a‰¤ 20mA(single? LED)
Control? system	CPU	Pentium4? or? above
Operating? system	WIN98/2000/NT/XP
Control? method	Synchronization
Main? technical? parameter	Driving? device	Static? scanning, ? also? virtual
Drive? type	Constant? Current? driver? IC
Refresh? frequency	a‰￥ 400Hz
Grey? scale/colors	256? levels? of? each? color(R/G/B)/16.7M? color
Brightness? of? white? balance	More? than? 10, 000cd/sqm
Brightness? adjustment	256? levels? of? each? color(R/G/B)by? software
Operating? ambient? humidity	10%--95%
Video? signal?	PAL/NTSC
Control? system	DVI? display? card+full? color? controller? card
MTBF	a‰￥ 10, 000hours
Life? span	a‰￥ 100, 000hours
Flatness	Tolerance? of? interpixel? a‰¤ 0.3mm
Tolerance? of? modules? clearancea‰¤ 0.6mm
Power? switch	Automatic? switch
Display? mode	1024*768
Communication? distance	Network? calbe: 100m, ? Multi-model: ? 500m, ? Single-model? fiber: 20km
Software	LED? media? player
