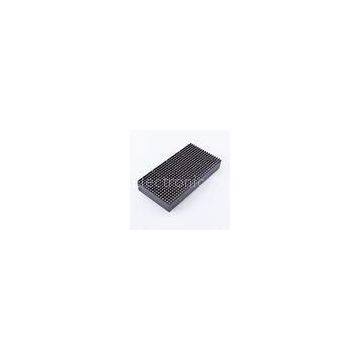

P20 Outdoor Virtual led display module p10-1r outdoor led display module

Feature and Advantage
1. Waterproof and dustproof: IP68front, IP65back
2. Best viewing distance: 16-300m
3. White balance brightness: 9000CD/sqm can adjustable
4. Horizontal viewing angle: 120degree
5. Working temperatue: -20degree-+80degree
6. MTBF: More than 10, 000hours
7. Life span: More than 100, 000hours
8. Contrast ratio: 4000: 1
9. Average power consumption: 500W
Application and Market
1. Application
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
Our service1. Your inquiry related to our products or price will be replied in 24hrs2. OEM&ODM, any your customized lightings we can help you to design and put into product3. Distributoership are offered for your unique design and some our current models4. Protection of your sales area, ideas of design and all your private information5. Top quality+Reasonable price+Responsible After Service=Successful & Win
Trade Terms1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery 3. Shipping freight are quoted under your requests4. Shipping port: Shenzhen, Mainland China5. Warranty time: 3years
6. Delivery time: 3-12working days
v id=\"StyleTableProd\">

Description	Technical? parameter
Unit? module	Module? size	320*160mm
Pixel? pitch?	20mm
Pixel? density	2500dots/m2
Pixel? configuration	2R1G1B
Led? specification	?| 5ellipse
Pixel? resolution	W: 16dots*H: 8dots
Cabinet	Dimension	960mm*960mm*110mm?
Quantities? of? module	18pcs
Power? supply	4pcs
Thermal? discharge	Fan*2pcs
Total? weight	55kg
Best? viewing? angle	16-300m
Temperature	Storage: ? -35degree~+85degree
Working: ? -20degree~+80degree
Thickness	11cm? can? adjustable
Remarks: ? cabinet? size? can? changed, ? upon? project? need.
Power	Working? voltage	AC220V/110V± 10%
Average? power? consumption	450W
Max. ? Power? consumption	a‰¤ 1000W/sqm
Current	a‰¤ 20mA(single? LED)
Control? system	CPU	Pentium4? or? above
Operating? system	WIN98/2000/NT/XP
Control? method	Synchronization
Main? technical? parameter	Driving? device	Static? virtual? scanning
Drive? type	Constant? Current? driver? IC
Refresh? frequency	a‰￥ 400Hz
Grey? scale/colors	256? levels? of? each? color(R/G/B)/16.7M? color
Brightness? of? white? balance	More? than? 9000cd/sqm
Brightness? adjustment	256? levels? of? each? color(R/G/B)by? software
Operating? ambient? humidity	10%--95%
Video? signal?	PAL/NTSC
Control? system	DVI? display? card+full? color? controller? card
MTBF	a‰￥ 10, 000hours
Life? span	a‰￥ 100, 000hours
Flatness	Tolerance? of? interpixel? a‰¤ 0.3mm
Tolerance? of? modules? clearancea‰¤ 0.6mm
Power? s
