Soundboss SMD 3in1 P6 Led Illumination Panel Sign Board For Night Club

FOB Price

Negotiable / Kilogram

1 Kilogram(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	GLIANG		Place of Origin	China
Model Number	GLIANG

Delivery Time:15days
Certification:CE, CCC, FCC, ROSH, ISO9001

Soundboss SMD 3in1 P6 Led Illumination Panel Sign Board For Night Club

2011 Asian cup LED supplier

1. CE RoHS certificate

2.?36 months warranty and Life long free tech-support

3. Excellent contrast ratio, high resolution/high definition

4.Perect uniformity and no mosaic

5. Light weight and easy to install

6. Available models:P4, P5, P6, P7.62, P8, P10, P12, ect.

Application:

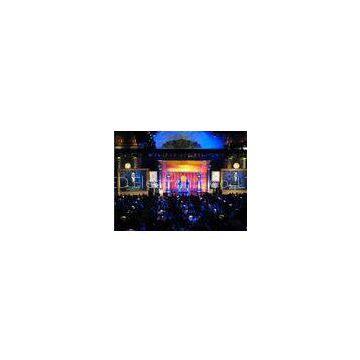

Commercial advertising, stadium, TV studio, mobile media, night club, entertainment events, business establishments;

Advantage:

1. High Contrast ratio: 4000:1

2. First-class LED chip:

3. Clear vivid image quality:

4. Long life time of? more than 70, 000 hrs.

5. Easy Installation & Operation

SBI-P6 (Pitch 6mm indoor full color-1/8 scan)
Technique	SMD
Pixel structure	1R1G1B 3in1
Pixel pitch	6mm
Pixel density	27, 777 dots/㎡
Luminance	2, 000cd/㎡
Module dimension	192mm(W) * 96mm(H)
Module resolution	32 pixel(W) * 16 pixel mm(H)
Cabinet dimension	768 * 576mm
Cabinet resolution	128 * 96
Cabinet area	0.442 ter
Optimal visual distance	>6m
Visual angel	140 degree (H/V)
Max power consumption	≤1100w / ㎡
Average power consumption	≤600w / ㎡
Brightness adjustment	Adjust according to the environment
brightness software (0%-100%adjustable)
Gray scale	point by point 4096 gray grade levels of?
each color, 16 bits γ correction available
Drive mode	1/8 dynamic scan, constant current
Frame frequency	≥60HZ
Refresh frequency	≥1000HZ
Input voltage	AC 90~260 volts
Operation temperature	﹣40℃~ +60℃
Operation humidity	10％～90％
Input signal	S-video, RF, RGB, Yuv, YC, composite…
Control system	DVI card + master control card + receiver card
MTBF	>5000 hrs
Life span (50% brightness)	100, 000 hrs
Malfunction dot rate	1/10000
Ingress protection rate	IP31
Cabinet material	Epoxy paint coated, aluminum / iron
Application:
