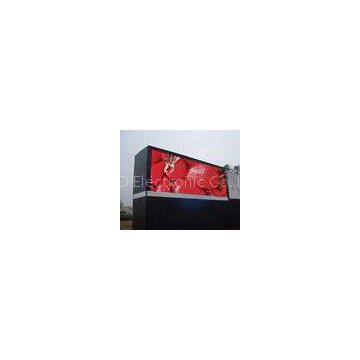

DIP P20 Outdoor LED Display For Advertising , 1R1G1B Full Color LED Screen 2500 dots/m2

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	GLIANG		Place of Origin	China
Model Number	GLIANG

Product Description

Delivery Time:15days
Certification:CE, CCC, FCC, ROSH, ISO9001

Quick Detail:

1.Luminance >7000nits
2.Better outdoor TV
3.Cheap low price
4.Commercial advertising billboard

DIP P20 Outdoor LED Display For Advertising , 1R1G1B Full Color LED Screen 2500 dots/m2

Description:

1.High brightness Contrast:4000:1,which is a very high level to ensure a vivid image of our LED display screen system..
2. First-class LED chip: Supplied by Cree & other high strictly selected LED chip to ensure the long lift-time and high brightness of our LED display screen system
3.Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED display screen\'s investment.
4.Long-term Brightness:More 7000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.
5.Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system?
?

Applications:

???????????? Plaza

???????????? Square

???????????? Expressway

?? ??????????Entertainment

???????????? Commercial center
???????????? Banks

???????????? Hospitals?

LED Specification

Part Number	Teeho?-P20
Resolution	16(H)×8(V)
Pixel Pitch	20mm
LED Configuration	1R1G1B - DIP
Pixel Density	2,500 pixels/ ㎡
Module Size	320×160mm
Cabinet Size	1280×960mm, 960×960mm, etc.
Driving IC	MBI5026
Driving Method	Static State, Constant Current
Weight	58KG/sq.m.
Mechanical Ratings
Hanging Weight Support	2T
Surface Flatness	Gap<0.5mm
Optical Ratings
Brightness	>6,500cd/ ㎡
View Angle	120°/60°
Gray Scale	8bits input, correction with 14bits
Display COLOR	16.7M
Brightness Adjustment	0～100% 10 level
Power Supply
Operation Power	90～260V 50～60Hz
Max. Power Consumption	1000W/ ㎡
Average Power Consumption	300W/ ㎡
Control System
Control Mode	Synchronous display with control PC by DVI
Frame Update Frequency	60～85Hz
Screen Refresh Frequency	300～1000Hz
Gamma Correction	-5.0～+5.0
Support Input	Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance	Ethernet cable<120m or Fiber Optic<10Km
Support VGA Mode	1024×768, 1280×1024, 1600×1200, 1920×1280
