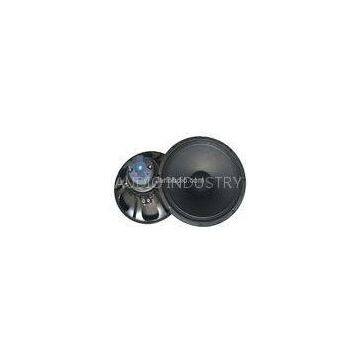

8 / 10 / 15 / 18 In Loudspeaker Woofer , 8 ohm High Power

8 ?/ 10 / 15 / 18 ?In Loudspeaker Woofer , 8 ohm High Power?

PAB Series Loudspeakers

Big power audio woofer PAB Series Loudspeakers

Description:

1.Steel speaker frame ;
2.classical design ;
3.big power
4.Competitive price
5.Fast delivery

Specifications:

Specifications??????????????PAB0801-28????? PAB1001-34?????? PAB1201-44????? PAB1501-44

Nominal?Diameter??????210mm(8in)??????261mm(10in)?????312mm(18in)????390mm(15in)

Nominal?Impedance??????8?ohm?????????????? ??8?ohm????????????????? 8?ohm????????????? ??8?ohm

Frequency?Range??????? ?65-20KHz?????????? ?55-20KHz??????????46-20KHz????????? 42-20KHz

Woofer?unit

Sensitivity??????????????????????102dBw/m?????????? 103dBw/m??????????106dBw/m????????107dBw/m

Continuous?Program??????200W???????????? ??? ??280W???????????????????320W????????????? ??350W

Voice?Coil?Diameter??????50.5mm???????? ???? 50.5mm???????????? ??60.6mm???????????60.6mm

Magnet?????????????????????????????????30?Oz?????????????? ? 40?Oz?????????????????? ?50?Oz?????????????? 50?Oz

Tweeter?unit???????????????28mm?titanium??34mm?titanium??44mm?titanium?44mm?titanium

Sensitivity??????????????????????? 106dBw/m????????106dBw/m???????? 108dBw/m???????108dBw/m

Continuous?Program???????? 30W?????????????????? ??30W???????????????? ??40W????????????????? ?40W

Voice?Coil?Diameter???28mm?Kapton???34mm?Kapton??? 44mm?Kapton??44mm?Kapton

Magnet???????????????????????????????11?Oz?????????????????? ???12?Oz??????????????? ?22?Oz??????????????? ?22?Oz

DCR(Ohm)???????????????????????????7.0??????????????????????????7.0?????????????????????7.0????????????????? ??7.0

Recom?Crossover????????2.2KHZ????????????????? ???2.2KHZ???????????? ?2.2KHZ???????????? ?2.2KHZ

Woofer(Thiele?&?Small?Parameters?)

FS???????????????????????????????????? ?63HZ????????????????????? ??52HZ??????????? ??? ? 45HZ??????????????? ?40HZ

Re????????????????????????????????????5.0?ohm????????????????? ??5?ohm??????????????? ??5?ohm????????????????5?ohm

Qes???????????????????????????????????0.39??????????????????????? ??0.35???????????????????? ?0.32????????????????? ?0.46

Qms???????????????????????????????????4.1????????????????????????????3.7?????????????????????? ?4.9????????????????? ?? ?6.5

Qts????????????????????????????????? ??0.36??????????????????????????0.32??????????????????????? 0.3???????????????? ????0.43

Mms??????????????????????????????????21g???????????????????????????28g?????????????????????? ?39g????????????????????86g

Vas????????????????????????????????? 16?Ltr??????????????????????? ?40?Ltr?????????????????????79?Ltr????????????? ?165?Ltr

Sd????????????????????????????????????220cm2???????????????? ?320cm2??????????????? 522cm2????????? ??855cm2

Flux?density????????????????????13.2T.m????????????????????14T.m??????????????? ? ?15.6T.m???????? ??16T.m

X-max?????????????????????????????3.25mm???????????????????3.5mm???????????????? ?3.5mm????????? ??4.25mm

Overview

We set a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price.

Highlights

Long-excursion motor and suspension for strong bass performance

Subtle yet high-tech look makes a bold cosmetic statement

Ultra-low stray magnetic field allows extremely close proximity to CRT\'s

After-sale?service:

1. Prompt delivery

2. Track?the?order?until?you?get?the?goods

3. Choose?the?cheapest?and?safest?shipping?company

4. We?will?replace?the?broken?parts?with?new?parts?in?your?next?order
