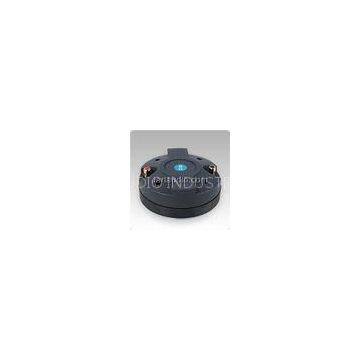

109dB Compression Driver Tweeter System , PA Speaker Driver

109dB Compression Driver Tweeter System , PA Speaker Driver

8ohm CY-3441S Compression Driver Tweeter Driver

Description:

1)Power Capacity:50W RMS
2)Sensitivity:109dB
3)Compression,Pa Speaker Driver
4)Impedance:8Ohm,1.57 KG
5)1.2KHz-20KHz

Specifications:

Throat Diameter : 1 in (25mm)
Mounting Type : Screw on 1 3/8″or Bolt-on
Nominal Impedance : 8 Ohm
Power Capacity : 50Watts RMS
Sensitivity(1W/1M) : 109dB
Frequency Range : 1.2KHz-20KHz
Diaphragm Material : Titanium
Voice Coil Diameter : 1.75 in(44.4mm)
Voice Coil Material : Round&Ribbon Aluminium Wire
Flux Density : 1.6T
Magnet : Strontium Ferrite
Overall Diameter×Depth : 115mm (4.53in)×67.5mm (2.66in)
Net Weight : 1.57Kg

Overview:

High quality compression driver offering excellent efficiency and low distortion. It is recommended for use in studio monitors, stage boxes, and sound reinforcement in small to medium rooms.

Highlights:

Titanium diaphragm for durability and extended HF response

Optimized phase plug eliminate phase cancellation problems

High-temperature voice coil materials ensure reliability

Smooth, extended frequency response

Easy diaphragm replacement
