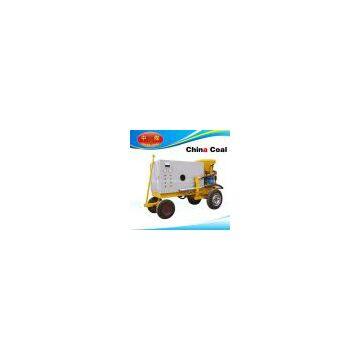

KPS type wet spraying machine

KPS type wet spraying machine

Product Introduction

KPS type wet spraying machine is a new and efficient sprayed concrete machinery, mainly for concrete wet, allow mixture mix evenly, accurate control of water cement ratio, will help cement hydration, so have the advantage of little dust, small rebound , concrete homogeneity and high strength.The machine have reasonable structure, stable performance, easy operation and maintenance, long service life, widely used in iron (public) road tunnel, subway, hydropower engineering, underground engineering and mine shaft shotcrete construction operations. KPS type wet spraying machine uses a unique way of cutting, material flow uniformity, stability, pulse small, reasonable feeding height, more effectively reduce the labor intensity, to further improve the work efficiency.

Structure feature

Special vibration hopper enables the wet concrete mix well into the rotor chamber;

The new metering pump can be accurately and evenly add liquid accelerator;

Discharge elbow make the material flow uniform, continuous, stable, pulse small, and eliminate the wet concrete bonding plugging make the system working pressure lower.

Technical Parameter

 Item                                  Unit    KPS-A   KPS-B
Working capacity               M3/h    5             5-6
Max conveying distance      m      30            30
Concrete slump                  cm       8-15        8-15
Accelerator addition                       0-7%      0-7%
Max aggregate size           mm       ф15        ф15
Conveying pipe dia            mm       ф51     ф51 or ф64
Air pressure                       MPa     0.3-0.6      0.3-0.6
Air consumption               M3/min   8-10        10-12
Motor power                     Kw          5.5         7.5
Machine weight                 Kg       1000         1500
Outer size                           m         2000х800х1200   2200х800х1200
