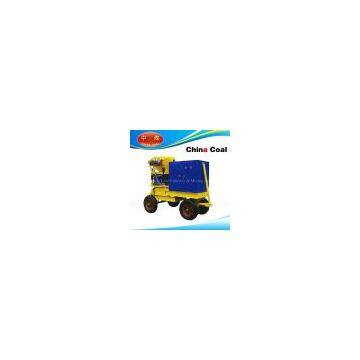

KSP-5 wet concrete spraying machine

KSP-5 wet concrete spraying machine

Product Introduction

KSP-5 concrete spraying machine (wet spraying machine) is mainly used for iron (public) road tunnel project. Equipment is easy to operate, low dust, low rebound, protect the environment and improve the quality of shotcrete, a special vibration hopper can successfully enter the concrete batching systems, standard metering pump to accurately add accelerator.Conveying speed vortex flow of low pressure, the working principle of injection close to overcome the plugging pulse, segregation problems. The injection material flow uniform and stable. Improve spray layer material.

Structure

KSP-5 type wet spraying machine is consisted of mainly driving electric motor, reducer, the rotor body assembly, sealing plate, hopper seats, nozzle, vibrating hopper, sleeve, pressed bodies and accelerator conveyor systems, air duct systems and electronic control devices and other components.

Technical feature

(1)Through rotor chamber no binder , the material smooth, efficient and time-saving;

(2)Four point elastic compensation compression, good sealing effect, little dust next machine,wearing parts with long life ;

(3)Using low pressure high speed vortex air transport, overcome the bonding of material handling, plugging away from the pack and pulse problems, material flow uniform, continuous and stable.

(4)New nozzle, discharge elbow device, to improve spray deposition, less resilient, high quality shotcrete.

Technical Parameter

Working capacity 5.5m3/h

Concrete Mix Ratio1:4-5C/A

Water-cement ratio ≤0.4

Max conveying distance200mhorizontal

Max aggregate diaΦ20mm

Conveying pipe diaΦ50mm

Air pressure0.2-0.4Mpa

Air consumption7-8m3/min

Feeding height1.1m

Motor power5.5KW

Voltage class 380V

Machine weight600kg

Outer size(L×W×H)2100*900*1280 (mm)
