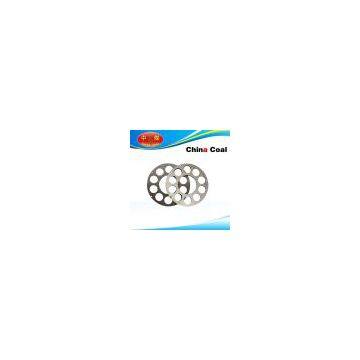

Shotcrete Machine Steel Sealing Plate

Shotcrete Machine Steel Sealing Plate

Product Introduction

Other names: wear plates, wear-resistant liner, also known as pressure plate, seal plate, combined with boards, friction plates, rubber combination plates, rubber seal plate.

Divided into: Due to the rotor body have up and down both sides, so divided into up and down steel liner plate, up wearing plate and down wearing plate plate , up sealing plate,down sealing plate,up combinated plate and down combinated plate.

Material: high manganese steel, stainless steel.

Application: with rubber plate supporting the use of the upper and lower sides of the rotor body used, make the seal function.

Scope of application

Shotcrete Machine Steel Sealing Plate is the wear part, so the usage is quite extensive, each spraying machines are equipped with two steel liner plate, and rubber sheets as two supporting the use of the circular the holes in outer liner orifice, the inner hole of vent holes, each vent orifice between the edges of the respective distance between the edges of not greater than 10 mm.

Shotcrete Machine Steel Sealing Plate is the main components of gravel, sand and gravel as straight abrasive wear faster, easier to grind strip groove on its surface, the passage of time resulting in elevated pad with serious air leakage at the joint surface, so that air pressure decreases , you can not spray, this can only be replaced with new steel liner plate.

Technical feature

The latest production technology, the latest formula made of special material, high hardness, high wear resistance, smooth surface, making the equipment to achieve the best sealing. In reducing dust and rebound rate, reducing the combined board losses have achieved significant results, in the course of good wear resistance, no distortion, no broken, can improve mill productivity, reduce mill downtime, its life is 3-5 times of ordinary high-manganese steel, the use of time of up to 1000 hours, is the rotor body shotcrete machine with a more ideal liner.

High manganese steel characteristics: high manganese steel with good ductility and toughness, the impact force generated on the surface hardened layer, the hardened surface layer is worn after a new surface layer, and continues to be hardened. Therefore, high manganese steel castings with high surface wear resistance, which some still retain the original mechanical properties.
