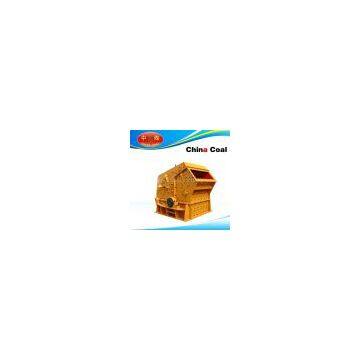

PFC Hammer Impact Crusher

PFC Hammer Impact Crusher

Product Introduction

Hammer crusher is one of the main equipments used for finely crushing limestone, coal salt, chalk and other brittle materials below medium hardness humidity lower than 15% in industries such as metallurgy, construction, chemicals production and water conservancy, etc. These crushers are best suited for limestone, ore with low Iron content, gypsum, etc.

Main Characteristics

1. Big feeding hole, high crushing cavity, suit high hardness, big fragmentation, less products rock flour.

2. Materials hang in the air, crushing low consumption.

3. Novelty hammer, huge impact.

4. Hammer axis installs adjustable, hammer head has a long life.

5. Grid size is adjustable, product size, particle shape well controlled.

6. Chassis can flip,overhaul more convenient.

7. Square handle bolts, impact resistance,abrasion resistance.

8. Compact structure, machine strong rigidity.

9. Spell body structure, handling, convenient installation.

10. Impact, backbiting, crash(stone dozen stone) crushing function complete, high production effiency, small part, the comprehensive benefit is remarkable abrasion.

Operating Principle

When stone materials enter the crushing cavity via the vibrating feeder, they'll be struck by the hammers hung the rotor and be thrown onto the impact plate. The materials which spring back from the impact plate will be struck by the hammers again until they reach the desired size, after which the materials will fall through the screening plate under the rotor .The distance between the impact plate and the rotor can be adjusted to meet shape and size requirements.
