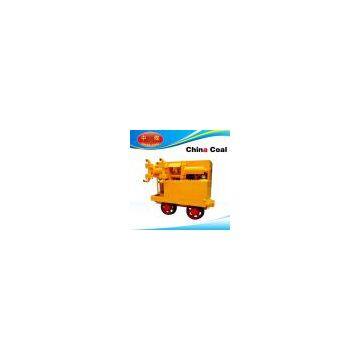

XZS80/100 double hydraulic grouting pump

XZS80/100 double hydraulic grouting pump

Product Introduction

XZS80/100 double hydraulic grouting pump is a single-cylinder double-acting piston pumps. Has simple structure, reliable operation, pumping pressure advantages. Mainly used in tunneling and maintenance, mine engineering, water conservancy and hydropower engineering, slope reinforcement, large bridges and high-rise building foundation treatment works and a variety of underground construction pressure grouting.can achieve a single solution or double grouts.

Feature

Single-cylinder double-acting, reciprocating piston, enabling the two liquids suction.

Hydraulic drive, the machine is reliable, high pumping pressure

Non-contact reversing mechanism to effectively reduce the failure rate and machine dry sound

Compact construction suitable for small spaces

Technical Parameter

Item Unit Parameter
Outlet flow L/min 80 70 45
Outer pressure MPa 2 5 10
Motor Model - YBK2-160L-4
 Power KW 15
Noise power level dB(A) 110
Outlet cylinder specs(inner dia x stroke) mm 110x140
Hydraulic working pressure MPa 12
Hydraulic flow L/min 50
Hydraulic tank capacity m3  0.08
Outer size(L x W x H) mm 1360x1050x1120
Weight(machine weight) kg 600
