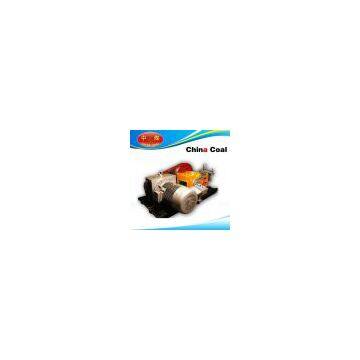

GZB-40C high pressure grouting pump

GZB-40C high pressure grouting pump

Product Introduction

GZB-40C high-pressure grouting pump is a high pressure jet equipment, mainly for high-pressure water jet to provide mud. Used for the new building, highway, railway, underground railways and other soft ground reinforcement for around foundation, hydropower dams and reservoirs cofferdam seepage.

Feature

GZB-40C high-pressure grouting pump is based on the original GZB-40A, GZB-40B gradual improvements. Compared with similar products, its bearing type transmission can avoid the sudden accident caused by roller driving, power side extend the working life; their bold crankshaft guarantee the crankshaft fracture will never occurs; hydraulic side reasonable structure, easy removal , accessories durable. Which is a very mature high-pressure mud pump.

Technical Parameter

Plunger stroke:100mm

Ratio:1=7.2545

Plunger stroke frequency:169 time

Suction tube dia:50mm

Discharge pipe dia:16~25mm

Plunger dia:45.50.55mm

Output flow:96.99.110L/Min

Rated pressure :42.40.35Mpa(with 90kw motor)

          35.30.28Mpa(with 75kw motor)

          25.22.20Mpa(with 55kw motor)

Motor model :YCT335-4C

Max motor speed:1340r/Min

Outer size :3050*1800*1150mm

Machine weight:3000kg
