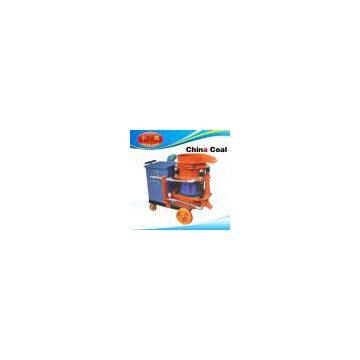

PZ-5-type gunite machine

PZ-5-type gunite machine

Product Introduction

PZ-5-type gunite machine is widely used in construction machinery, mines, tunnels, culverts, subway, hydropower engineering, underground engineering and high marsh coal mine tunnel shotcrete construction operations: Various types of industrial furnaces, molding spraying refractory lining or repair: a variety of green slope, soil transport and injection.The machine can be used for wave spray can also be used to dry spray and spray job fibers.

Feature

(1) Through rotor chamber no binder , the material smooth, efficient and time-saving;

(2) Four point elastic compensation compression, good sealing effect, little dust next machine,wearing parts with long life ;

(3) Using low pressure high speed vortex air transport, overcome the bonding of material handling, plugging away from the pack and pulse problems, material flow uniform, continuous and stable.

(4) New nozzle, discharge elbow device, to improve spray deposition, less resilient, high quality shotcrete.

Structure

PZ-5-proof dry-jet made up of driven explosion-proof motor, speed reducer, the rotor body assembly, sealing plate, rubber plate, compactor body, hopper seat, mining rail wheels, vibrating hopper, pressed institutions and air duct systems and electronic control devices and other components.

Technical Parameter

Model         PZ-5
Injection capacity  5.5/h
Max conveying distance 200m
Water-cement ratio          < 0.4
Max aggregate size  15mm
Conveying pipe dia φ50mm
Air pressure  0.2-0.6MPa
Air consumption          7-8/min
Drive power 5.5kW(7.5hp)
Voltage class   380V,440V,660V,1140V 50Hz/60Hz
Chassis Chassis can be assembled into a tire, skid type, rail wheel
