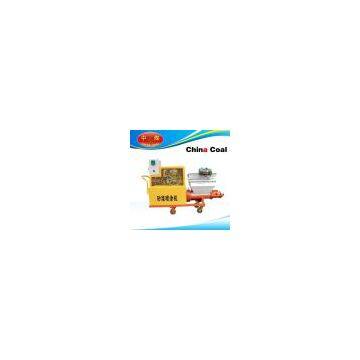

GLP-3B Mortar spraying machine

GLP-3B Mortar spraying machine

Product Introduction

GLP-3B Mortar spraying machine is mainly applied to ordinary mortar spraying interior and exterior plastering mortar spraying particles of polystyrene, perlite insulation mortar spraying, spraying glass beads insulation mortar, waterproof material coating and refractory spraying.

Feature

GLP-3B Mortar spraying machine adopts stepless gear reducer machine motor, compared to conventional spray machine has the following characteristics:

1、according to the type of coating material (viscosity of coating materials are different), the motor speed can be adjusted to change the size of the spray volume.

2、compared to using the inverter adjust speed have non-perishable, easy adjustment and other advantages.

3、increase the service life of wearing parts. Ordinary mortar spraying machine wear when wearing parts after flow and pressure decreases, the approach taken can only be replaced with new wearing parts, the machine can be increased by increasing the speed of the service life of wearing parts. Through experiments can increase 30% wearing parts life.

Technical Parameter

Working capacity 3--6m³/hr

Working pressure 3MPa

Horizontal conveying distance 50m

Vertical conveying distance 30m

Main motor power 7.5kw,380v

Screw speed 200---600RPM

Max aggregate size 4mm

Duct diameter 25/32mm

Hopper Capacity 50L

Feeding height 800mm

Outer size(L*W*H) 1835(1425)x600x1150mm

Machine weight 380kg
